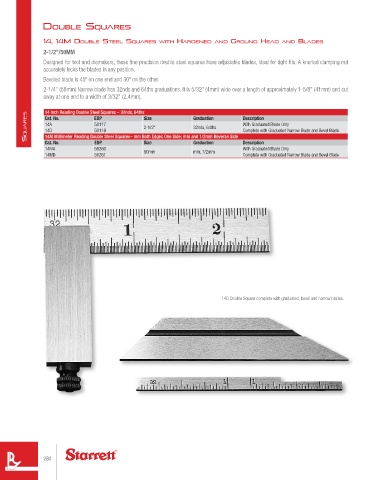

Page 280 - catalgo33

double squAres

14, 14M double steel squAres WItH HArdened And Ground HeAd And blAdes
2-1/2"/50MM
Designed for tool and diemakers, these fine precision double steel squares have adjustable blades, ideal for tight fits. A knurled clamping nut
accurately locks the blades in any position.
Beveled blade is 45º on one end and 30º on the other.
2-1/4" (58mm) Narrow blade has 32nds and 64ths graduations. It is 5/32" (4mm) wide over a length of approximately 1-5/8" (41mm) and cut
away at one end to a width of 3/32" (2.4mm).

SquareS 14 Inch Reading Double Steel Squares – 32nds, 64ths Size Graduation Description
Cat. No.
EDP
With Graduated Blade Only
50117
14A
32nds, 64ths
2-1/2"
50118
Complete with Graduated Narrow Blade and Bevel Blade
14D
14M Millimeter Reading Double Steel Squares– mm Both Edges One Side; mm and 1/2mm Reverse Side
Cat. No.
14MA EDP Size Graduation Description
56260
With Graduated Blade Only
mm, 1/2mm
50mm
14MD 56261 Complete with Graduated Narrow Blade and Bevel Blade

14D Double Square complete with graduated, bevel and narrow blades.
