tHIcKness GAGes

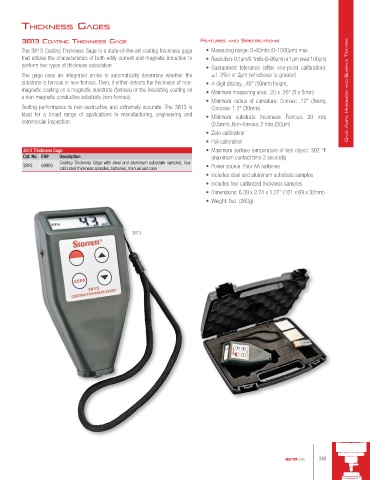

3813 coAtInG tHIcKness GAGe feAtures And specIfIcAtIons
The 3813 Coating Thickness Gage is a state-of-the-art coating thickness gage • Measuring range: 0-40mils (0-1000µm) max.
that utilizes the characteristics of both eddy current and magnetic induction to • Resolution: 0.1µm/0.1mils (0-99µm) or 1µm (over 100µm)
perform two types of thickness calculation. • Guaranteed tolerance (after one-point calibration):
The gage uses an integrated probe to automatically determine whether the ±1-3%n or 2µm (whichever is greater)
substrate is ferrous or non-ferrous. Then, it either detects the thickness of non- • 4-digit display, .40" (10mm) height,
magnetic coating on a magnetic substrate (ferrous) or the insulating coating on • Minimum measuring area: .20 x .20" (5 x 5mm) GaGe amps, Hardness and surf ace TesTers
a non-magnetic conductive substrate (non-ferrous).
• Minimum radius of curvature: Convex: .12" (3mm),
Testing performance is non-destructive and extremely accurate. The 3813 is Concave: 1.2" (30mm)
ideal for a broad range of applications in manufacturing, engineering and • Minimum substrate thickness: Ferrous: 20 mils
commercial inspection. (0.5mm), Non-ferrous: 2 mils (50µm)

• Zero calibration
• Foil calibration
3813 Thickness Gage • Maximum surface temperature of test object: 302 °F
Cat. No. EDP Description (maximum contact time 2 seconds)
Coating Thickness Gage with steel and aluminum substrate samples, four
3813 69883 • Power source: Four AA batteries
calibrated thickness samples, batteries, manual and case
• Includes steel and aluminum substrate samples
• Includes four calibrated thickness samples
• Dimensions: 6.39 x 2.74 x 1.27" (161 x 69 x 32mm)
• Weight: 9oz. (260g)

3813
