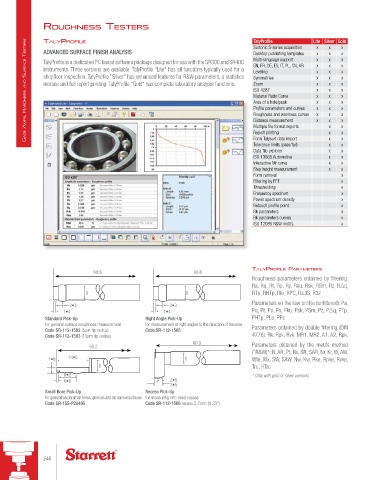

rouGHness testers TalyProfile Lite Silver Gold

GaGe amps, Hardness and surf ace TesTers TalyProfile is a dedicated PC based software package designed for use with the SR300 and SR400 Multi-language support x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x
tAlyprofIle
x
x
Surtonic S-series acquisition
x
ADVANCED SURFACE FINISH ANALYSIS
Desktop publishing templates
x
x
x
EN, FR, DE, ES, IT, PL, CN, KR
instruments. Three versions are available. TalyProfile "Lite" has all functions typically used for a
Leveling
shopfloor inspection. TalyProfile "Silver" has enhanced features for R&W parameters, a statistics
Symmetries
module and full report printing. TalyProfile "Gold" has complete laboratory analysis functions.
Zoom
ISO 4287
Material Ratio Curve
Area of a hole/peak
Profile parameters and curves
Roughness and waviness curves
Distance measurement
Multiple file format reports
Report printing
Form Talysurf data import
Tolerance limits (pass/fail) x x x x x x x x x x x
Data file explorer x x
ISO 13565 Automotive x x
Interactive Mr curve x x
Step height measurement x x
Form removal x
Filtering by FFT x
Thresholding x
Frequency spectrum x
Power spectrum density x
Retouch profile point x
Rk parameters x
Rk parameters curves x
ISO 12085 R&W motifs x

tAlyprofIle pArAMeters
60.8 60.8
Roughness parameters obtained by filtering:
Ra, Rq, Rt, Rp, Ry, Rku, Rsk, RSm, Rz, RΔq,
6 6 RTp, RHTp, RIo, RPC, RzJIS, R3z
Parameters on the raw profile (unfiltered): Pa,
2•3 2•3
1•4 1•4 Pq, Pt, Pp, Pv, Pku, Psk, PSm, Pz, PΔq, PTp,
Standard Pick-Up Right Angle Pick-Up PHTp, PLo, PPc
for general surface roughness measurement for measurement at right angles to the direction of traverse Parameters obtained by double filtering (DIN
Code SR-112-1502 (5µm tip radius) Code SR-112-1505
Code SR-112-1503 (10µm tip radius) 4776): Rk, Rpk, Rvk, MR1, MR2, A1, A2, Rpk,
60.9 Parameters obtained by the motifs method
60.2
("R&W)*: R, AR, Pt, Rx, SR, SAR, Nr, Kr, W, AW,
1•8 14•5 6 Wte, Wx, SW, SAW, Nw, Kw, Rke, Rpke, Rvke,
6 Trc, HTrc
8•2 * Only with gold or silver versions
0•8 2•5
3•5
Small Bore Pick-Up Recess Pick-Up
for general use in small bores, grooves and on narrow surfaces for measuring into deep recess
Code SR-155-P28495 Code SR-112-1506 recess 5.7mm (0.23")
