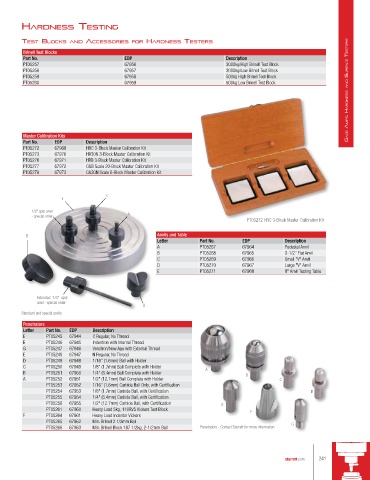

HArdness testInG

GaGe amps, Hardness and surf ace TesTers
test blocKs And AccessorIes for HArdness testers
Brinell Test Blocks
Part No. EDP Description
PT05257 67956 3000kg High Brinell Test Block
PT05258 67957 3000kg Low Brinell Test Block
PT05259 67958 500kg High Brinell Test Block
PT05260 67959 500kg Low Brinell Test Block

Master Calibration Kits
Part No. EDP Description
PT05272 67969 HRC 3-Block Master Calibration Kit
PT05273 67970 HR30N 3-Block Master Calibration Kit
PT05276 67971 HRB 3-Block Master Calibration Kit
PT05277 67972 C&B Scale 20-Block Master Calibration Kit
PT05278 67973 C&30N Scale 6-Block Master Calibration Kit

C
E
1/2" spot anvil A
- special order
PT05272 HRC 3-Block Master Calibration Kit

B Anvils and Table
Letter Part No. EDP Description
A PT05267 67964 Pedestal Anvil
B PT05268 67965 2-1/2" Flat Anvil
C PT05269 67966 Small "V" Anvil
D PT05270 67967 Large "V" Anvil
E PT05271 67968 8" Anvil Testing Table

Extended 1/4" spot
anvil - special order
D
Standard and special anvils
Penetrators
Letter Part No. EDP Description
E PT05245 67944 C Regular, No Thread
E PT05246 67945 Indentron with Internal Thread
G PT05247 67946 Versitron/New Age with External Thread
E PT05248 67947 N Regular, No Thread
D PT05249 67948 1/16" (1.6mm) Ball with Holder
C PT05250 67949 1/8" (1.7mm) Ball Complete with Holder A
B PT05251 67950 1/4" (6.4mm) Ball Complete with Holder B
A PT05252 67951 1/2" (12.7mm) Ball Complete with Holder C
PT05253 67952 1/16" (1.6mm) Carbide Ball Only, with Certification
PT05254 67953 1/8" (1.7mm) Carbide Ball, with Certification D
PT05255 67954 1/4" (6.4mm) Carbide Ball, with Certification
PT05256 67955 1/2" (12.7mm) Carbide Ball, with Certification E
PT05261 67960 Heavy Load 5kg, 110RV5 Vickers Test Block F
F PT05264 67961 Heavy Load Indentor Vickers
PT05265 67962 Min. Brinell 2 1/2mm Ball G
PT05266 67963 Min. Brinell Block 187 1/2kg, 2-1/2mm Ball Penetrators - Contact Starrett for more information
