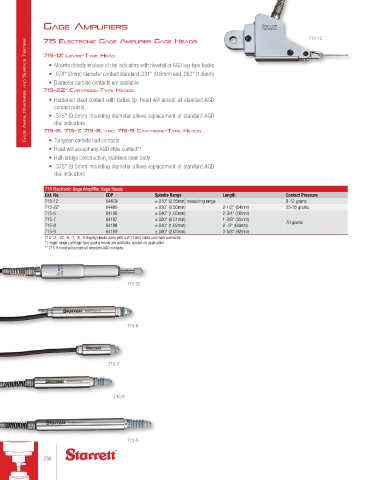

GAGe AMplIfIers
715-1Z
GaGe amps, Hardness and surf ace TesTers 715-2Z* cArtrIdGe-type HeAds
715 electronIc GAGe AMplIfIer GAGe HeAds
715-1Z lever-type HeAd
• Mounts directly in place of dial indicators with dovetail or AGD lug-type backs
• .078" (2mm) diameter contact standard .031" (0.8mm) and .062" (1.6mm)
• Diameter carbide contacts are available

• Hardened steel contact with radius tip. Head will accept all standard AGD
contact points.
• .375" (9.5mm) mounting diameter allows replacement of standard AGD
dial indicators
715-6, 715-7, 715-8, And 715-9 cArtrIdGe-type HeAds
• Tungsten carbide ball contacts
• Head will accept any AGD style contact**
• Half-bridge construction, stainless steel body
• .375" (9.5mm) mounting diameter allows replacement of standard AGD
dial indicators

715 Electronic Gage Amplifier Gage Heads
Cat. No. EDP Spindle Range Length Contact Pressure
715-1Z 64479 ±.010" (0.25mm) measuring range 8-12 grams
715-2Z* 64480 ±.020" (0.50mm) 2-1/2" (64mm) 25-35 grams
715-6 64186 ±.040" (1.02mm) 2-3/4" (70mm)
715-7 64187 ±.020" (0.51mm) 1-3/8" (35mm) 70 grams
715-8 64188 ±.040" (1.02mm) 2 -/2" (64mm)
715-9 64189 ±.080" (2.03mm) 3-5/8" (92mm)
715-1Z, -2Z, -6, -7, -8, -9 Gaging Heads come with a 6' (1.8m) cable and male connector.
* Longer range cartridge-type gaging heads are available, quoted on application.
** 715-9 head will accept all standard AGD contacts.

715-2Z

715-6

715-7

715-8

715-9
