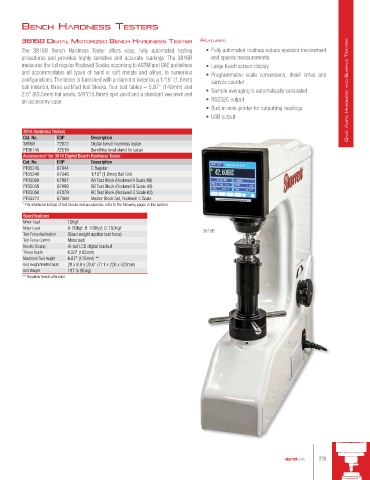

bencH HArdness testers

3816b dIGItAl MotorIZed bencH HArdness tester feAtures
The 3816B Bench Hardness Tester offers easy, fully automated testing • Fully automated routines reduce operator involvement
procedures and provides highly sensitive and accurate readings. The 3816B and speeds measurements
measures the full regular Rockwell Scales according to ASTM and SAE guidelines • Large touch screen display
and accommodates all types of hard or soft metals and alloys, in numerous • Programmable scale conversions, dwell times and
configurations. The tester is furnished with a diamond indentor, a 1/16" (1.6mm) sample counter
ball indentor, three certified test blocks, four test tables – 5.87" (149mm) and • Sample averaging is automatically calculated
2.5" (63.5mm) flat anvils, 5/8"(15.9mm) spot anvil and a standard vee anvil and GaGe amps, Hardness and surf ace TesTers
an accessory case. • RS232C output
• Built in mini-printer for outputting readings
• USB output

3816 Hardness Testers
Cat. No. EDP Description
3816B 72972 Digital bench hardness tester
PT06145 72519 Benchtop level stand for tester
Accessories* for 3816 Digital Bench Hardness Tester
Cat. No. EDP Description
PT05245 67944 C Regular
PT05249 67948 1/16" (1.6mm) Ball Unit
PT05069 67897 RA Test Block (Rockwell A Scale 80)
PT05059 67888 RB Test Block (Rockwell B Scale 90)
PT05050 67879 RC Test Block (Rockwell C Scale 63)
PT05272 67969 Master Block Set, Rockwell C Scale
* For additional listings of test blocks and accessories, refer to the following pages in this section.
Specifications
Minor Load 10Kgf
Major Load A: 60Kgf, B: 100Kgf, C: 150Kgf 3816B
Test Force Application (Dead weight applies test force)
Test Force Control Motorized
Results Display Hi-def LCD digital readout
Throat Depth 6.50" (165mm)
Maximum Test Height 6.87" (175mm) **
Unit Height/Width/Depth 28 x 8.9 x 20.6" (711 x 226 x 523mm)
Unit Weight 187 lb (85kg)
** Requires bench alteration.
