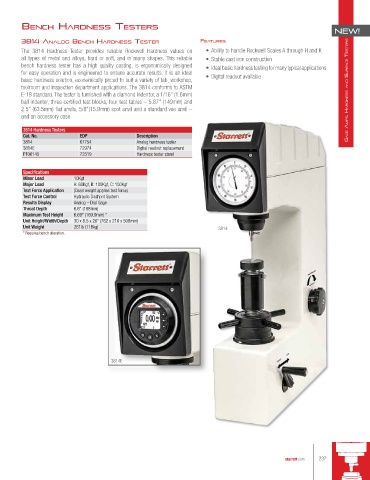

bencH HArdness testers
New!
3814 AnAloG bencH HArdness tester feAtures
The 3814 Hardness Tester provides reliable Rockwell Hardness values on • Ability to handle Rockwell Scales A through H and K
all types of metal and alloys, hard or soft, and in many shapes. This reliable • Stable cast iron construction
bench hardness tester has a high quality casting, is ergonomically designed • Ideal basic hardness testing for many typical applications
for easy operation and is engineered to ensure accurate results. It is an ideal
basic hardness solution, economically priced to suit a variety of lab, workshop, • Digital readout available
toolroom and inspection department applications. The 3814 conforms to ASTM
E-18 standard. The tester is furnished with a diamond indentor, a 1/16" (1.6mm) GaGe amps, Hardness and surf ace TesTers
ball indentor, three certified test blocks, four test tables – 5.87" (149mm) and
2.5" (63.5mm) flat anvils, 5/8"(15.9mm) spot anvil and a standard vee anvil –
and an accessory case.

3814 Hardness Testers
Cat. No. EDP Description
3814 67754 Analog hardness tester
3814E 72974 Digital readout replacement
PT06145 72519 Hardness tester stand

Specifications
Minor Load 10Kgf
Major Load A: 60Kgf, B: 100Kgf, C: 150Kgf
Test Force Application (Dead weight applies test force)
Test Force Control Hydraulic Dashpot System
Results Display Analog – Dial Gage
Throat Depth 6.6" (168mm)
Maximum Test Height 6.69" (169.9mm) *
Unit Height/Width/Depth 30 x 8.5 x 20" (762 x 216 x 508mm)
Unit Weight 261lb (118kg) 3814
* Requires bench alteration.

3814E
