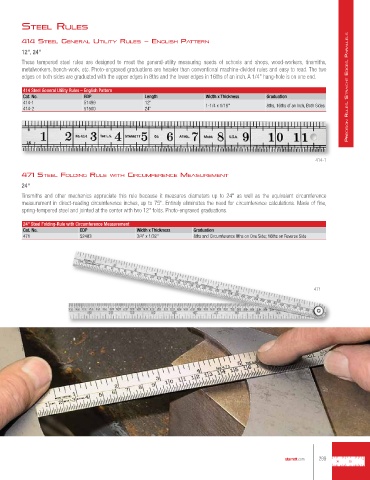

steel rules

414 steel GenerAl utIlIty rules – enGlIsH pAttern
12", 24"
These tempered steel rules are designed to meet the general-utility measuring needs of schools and shops, wood-workers, tinsmiths,
metalworkers, bench-work, etc. Photo-engraved graduations are heavier than conventional machine-divided rules and easy to read. The two
edges on both sides are graduated with the upper edges in 8ths and the lower edges in 16ths of an inch. A 1/4" hang-hole is on one end.

414 Steel General Utility Rules – English Pattern Precision rules, straight edges, Parallels
Cat. No. EDP Length Width x Thickness Graduation
414-1 51499 12" 1-1/4 x 1/16" 8ths, 16ths of an Inch, Both Sides
414-2 51500 24"

414-1

471 steel foldInG rule WItH cIrcuMference MeAsureMent
24"
Tinsmiths and other mechanics appreciate this rule because it measures diameters up to 24" as well as the equivalent circumference
measurement in direct-reading circumference inches, up to 75". Entirely eliminates the need for circumference calculations. Made of fine,
spring-tempered steel and jointed at the center with two 12" folds. Photo-engraved graduations.

24" Steel Folding-Rule with Circumference Measurement
Cat. No. EDP Width x Thickness Graduation
471 52483 3/4" x 1/32" 8ths and Circumference 8ths on One Side; 16ths on Reverse Side

471
