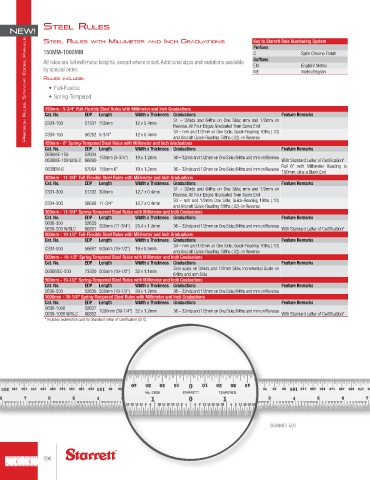

Page 296 - catalgo33

steel rules
New!
Precision rules, straight edges, Parallels
steel rules WItH MIllIMeter And IncH GrAduAtIons Key to Starrett Rule Numbering System
Prefixes
150MM-1000MM C Satin Chrome Finish
All rules are full millimeter lengths, except where noted. Additional sizes and variations available Suffixes
by special order. EM English/ Metric
ME
Metric/English
rules Include:
• Full-Flexible
• Spring-Tempered

150mm - 5-3/4" Full-Flexible Steel Rules with Millimeter and Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
31 – 32nds and 64ths on One Side; mm and 1/2mm on
C331-150 51331 150mm 12 x 0.4mm
Reverse. All Four Edges Graduated from Same End
34 – mm and 1/2mm on One Side; Quick-Reading 10ths (.10)
C334-150 56262 5-3/4" 12 x 0.4mm
and Aircraft Quick-Reading 50ths (.02) on Reverse
150mm - 6" Spring-Tempered Steel Rules with Millimeter and Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C636ME-150 52634 150mm (5-3/4") 19 x 1.2mm 36 – 32nds and 1/2mm on One Side; 64ths and mm on Reverse
C636ME-150 W/SLC 66890 With Standard Letter of Certification*
Full 6" with Millimeter Reading to
C636EM-6 57064 150mm 6" 19 x 1.2mm 36 – 32nds and 1/2mm on One Side; 64ths and mm on Reverse
150mm; plus a Blank End
300mm - 11-3/4" Full-Flexible Steel Rules with Millimeter and Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
31 – 32nds and 64ths on One Side; mm and 1/2mm on
C331-300 51332 300mm 12.7 x 0.4mm
Reverse. All Four Edges Graduated from Same End
34 – mm and 1/2mm One Side; Quick-Reading 10ths (.10)
C334-300 56696 11-3/4" 12.7 x 0.4mm
and Aircraft Quick-Reading 50ths (.02) on Reverse
300mm - 11-3/4" Spring-Tempered Steel Rules with Millimeter and Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C636-300 52635 300mm (11-3/4") 25.4 x 1.2mm 36 – 32nds and 1/2mm on One Side; 64ths and mm on Reverse
C636-300 W/SLC 66891 With Standard Letter of Certification*
500mm - 19-1/2" Full-Flexible Steel Rules with Millimeter and Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
34 – mm and 1/2mm on One Side; Quick-Reading 10ths (.10)
C334-500 56697 500mm (19-1/2") 19 x 0.5mm
and Aircraft Quick-Reading 50ths (.02) on Reverse
500mm – 19-1/2" Spring Tempered Steel Rules with Millimeter and Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
Zero scale on 32nds and 1/2mm Side; Incremental Scale on
C636MEC-500 73320 500mm (19-1/2") 32 x 1.1mm
64ths and mm Side
500mm - 19-1/2" Spring-Tempered Steel Rules with Millimeter and Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C636-500 52636 500mm (19-1/2") 29 x 1.2mm 36 – 32nds and 1/2mm on One Side; 64ths and mm on Reverse
1000mm - 39-1/4" Spring-Tempered Steel Rules with Millimeter and Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C636-1000 52637 1000mm (39-1/4") 32 x 1.2mm 36 – 32nds and 1/2mm on One Side; 64ths and mm on Reverse
C636-1000 W/SLC 66892 With Standard Letter of Certification*
* Includes redemption card for Standard Letter of Certification (SLC).

C636MEC-500
