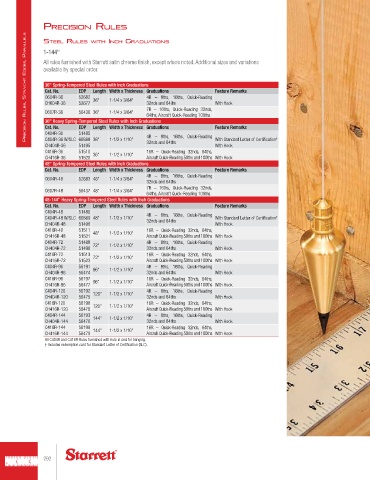

Page 292 - catalgo33

precIsIon rules
Precision rules, straight edges, Parallels
steel rules WItH IncH GrAduAtIons
1-144"
All rules furnished with Starrett satin chrome finish, except where noted. Additional sizes and variations
available by special order.

36" Spring-Tempered Steel Rules with Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C604R-36 52682 36" 1-1/4 x 3/64" 4R – 8ths, 16ths, Quick-Reading
CH604R-36 52677 32nds and 64ths With Hook
7R – 16ths, Quick-Reading 32nds,
C607R-36 56436 36" 1-1/4 x 3/64"
64ths, Aircraft Quick-Reading 100ths
36" Heavy Spring-Tempered Steel Rules with Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C404R-36 51485
C404R-36 W/SLC 66888 36" 1-1/2 x 1/10" 4R – 8ths, 16ths, Quick-Reading With Standard Letter of Certification †
32nds and 64ths
CH404R-36 51495 With Hook
C416R-36 51510 36" 1-1/2 x 1/10" 16R – Quick-Reading 32nds, 64ths,
CH416R-36 51520 Aircraft Quick-Reading 50ths and 100ths With Hook
48" Spring-Tempered Steel Rules with Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
4R – 8ths, 16ths, Quick-Reading
C604R-48 52683 48" 1-1/4 x 3/64"
32nds and 64ths
7R – 16ths, Quick-Reading 32nds,
C607R-48 56437 48" 1-1/4 x 3/64"
64ths, Aircraft Quick-Reading 100ths
48-144" Heavy Spring-Tempered Steel Rules with Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C404R-48 51486 4R – 8ths, 16ths, Quick-Reading
C404R-48 W/SLC 66889 48" 1-1/2 x 1/10" 32nds and 64ths With Standard Letter of Certification †
CH404R-48 51496 With Hook
C416R-48 51511 48" 1-1/2 x 1/10" 16R – Quick-Reading 32nds, 64ths,
CH416R-48 51521 Aircraft Quick-Reading 50ths and 100ths With Hook
C404R-72 51488 72" 1-1/2 x 1/10" 4R – 8ths, 16ths, Quick-Reading
CH404R-72 51498 32nds and 64ths With Hook
C416R-72 51513 72" 1-1/2 x 1/10" 16R – Quick-Reading 32nds, 64ths,
CH416R-72 51523 Aircraft Quick-Reading 50ths and 100ths With Hook
C404R-96 56191 96" 1-1/2 x 1/10" 4R – 8ths, 16ths, Quick-Reading
CH404R-96 56474 32nds and 64ths With Hook
C416R-96 56197 96" 1-1/2 x 1/10" 16R – Quick-Reading 32nds, 64ths,
CH416R-96 56477 Aircraft Quick-Reading 50ths and 100ths With Hook
C404R-120 56192 120" 1-1/2 x 1/10" 4R – 8ths, 16ths, Quick-Reading
CH404R-120 56475 32nds and 64ths With Hook
C416R-120 56198 120" 1-1/2 x 1/10" 16R – Quick-Reading 32nds, 64ths,
CH416R-120 56478 Aircraft Quick-Reading 50ths and 100ths With Hook
C404R-144 56193 144" 1-1/2 x 1/10" 4R – 8ths, 16ths, Quick-Reading
CH404R-144 56476 32nds and 64ths With Hook
C416R-144 56199 144" 1-1/2 x 1/10" 16R – Quick-Reading 32nds, 64ths,
CH416R-144 56479 Aircraft Quick-Reading 50ths and 100ths With Hook
All C404R and C416R Rules furnished with hole in end for hanging.
† Includes redemption card for Standard Letter of Certification (SLC).
