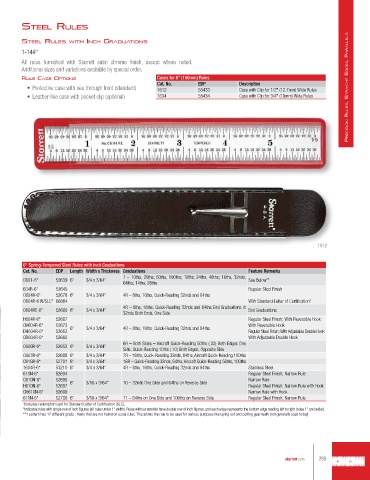

Page 289 - catalgo33

steel rules

steel rules WItH IncH GrAduAtIons
1-144"
All rules furnished with Starrett satin chrome finish, except where noted.
Additional sizes and variations available by special order.
rule cAse optIons Cases for 6" (150mm) Rules
Cat. No. EDP Description
• Protective case with see through front (standard) 1612 55433 Case with Clip for 1/2" (12.7mm) Wide Rules Precision rules, straight edges, Parallels
• Leather-like case with pocket clip (optional) 1634 55434 Case with Clip for 3/4" (19mm) Wide Rules

1612

6" Spring-Tempered Steel Rules with Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
1 – 10ths, 20ths, 50ths, 100ths; 12ths, 24ths, 48ths; 16ths, 32nds,
C601-6* 52639 6" 3/4 x 3/64" See Below**
64ths; 14ths, 28ths
604R-6* 52645 Regular Steel Finish
C604R-6* 52678 6" 3/4 x 3/64" 4R – 8ths, 16ths, Quick-Reading 32nds and 64ths
C604R-6 W/SLC* 66884 With Standard Letter of Certification †
4R – 8ths, 16ths, Quick-Reading 32nds and 64ths End Graduations in
C604RE-6* 52660 6" 3/4 x 3/64" End Graduations
32nds Both Ends, One Side
H604R-6* 52667 Regular Steel Finish; With Reversible Hook
CH604R-6* 52673 6" 3/4 x 3/64" 4R – 8ths, 16ths, Quick-Reading 32nds and 64ths With Reversible Hook
DH604R-6* 52662 Regular Steel Finish; With Adjustable Double Hook
CD604R-6* 52665 With Adjustable Double Hook
6R – Both Sides – Aircraft Quick-Reading 50ths (.02) Both Edges One
C606R-6* 52652 6" 3/4 x 3/64"
Side, Quick-Reading 10ths (.10) Both Edges, Opposite Side
C607R-6* 52688 6" 3/4 x 3/64" 7R – 16ths, Quick-Reading 32nds, 64ths, Aircraft Quick-Reading 100ths
C616R-6* 52701 6" 3/4 x 3/64" 16R – Quick-Reading 32nds, 64ths, Aircraft Quick-Reading 50ths, 100ths
1604R-6* 53210 6" 3/4 x 3/64" 4R – 8ths, 16ths, Quick-Reading 32nds and 64ths Stainless Steel
610N-6* 52694 Regular Steel Finish; Narrow Rule
C610N-6* 52696 6" 3/16 x 3/64" 10 – 32nds One Side and 64ths on Reverse Side Narrow Rule
H610N-6* 52697 Regular Steel Finish; Narrow Rule with Hook
CH610N-6* 52699 Narrow Rule with Hook
611N-6* 52700 6" 3/16 x 3/64" 11 – 64ths on One Side and 100ths on Reverse Side Regular Steel Finish; Narrow Rule
†Includes redemption card for Standard Letter of Certification (SLC).
*Indicates rules with single row of inch figures (all rules under 1" width). Rules without asterisk have double row of inch figures, and each edge represents the bottom edge reading left to right (rules 1" and wider).
**1 pattern has 12 different grads., many that are not found on usual rules. This allows the rule to be used for various purposes like laying out and cutting gear teeth (not generally used today).

starrett.com 289
