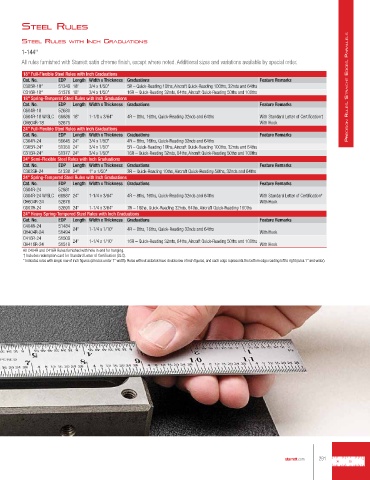

Page 291 - catalgo33

steel rules

steel rules WItH IncH GrAduAtIons
1-144"
All rules furnished with Starrett satin chrome finish, except where noted. Additional sizes and variations available by special order.

18" Full-Flexible Steel Rules with Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C305R-18* 51349 18" 3/4 x 1/50" 5R – Quick-Reading 10ths, Aircraft Quick-Reading 100ths, 32nds and 64ths Precision rules, straight edges, Parallels
C316R-18* 51376 18" 3/4 x 1/50" 16R – Quick-Reading 32nds, 64ths, Aircraft Quick-Reading 50ths and 100ths
18" Spring-Tempered Steel Rules with Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C604R-18 52680
C604R-18 W/SLC 66886 18" 1-1/8 x 3/64" 4R – 8ths, 16ths, Quick-Reading 32nds and 64ths With Standard Letter of Certification†
CH604R-18 52675 With Hook
24" Full-Flexible Steel Rules with Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C304R-24 56645 24" 3/4 x 1/50" 4R – 8ths, 16ths, Quick-Reading 32nds and 64ths
C305R-24* 51350 24" 3/4 x 1/50" 5R – Quick-Reading 10ths, Aircraft Quick-Reading 100ths, 32nds and 64ths
C316R-24* 51377 24" 3/4 x 1/50" 16R – Quick-Reading 32nds, 64ths, Aircraft Quick-Reading 50ths and 100ths
24" Semi-Flexible Steel Rules with Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C303SR-24 51338 24" 1" x 1/50" 3R – Quick-Reading 10ths, Aircraft Quick-Reading 50ths, 32nds and 64ths
24" Spring-Tempered Steel Rules with Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C604R-24 52681
C604R-24 W/SLC 66887 24" 1-1/4 x 3/64" 4R – 8ths, 16ths, Quick-Reading 32nds and 64ths With Standard Letter of Certification †
CH604R-24 52676 With Hook
C607R-24 52691 24" 1-1/4 x 3/64" 7R – 16ths, Quick-Reading 32nds, 64ths, Aircraft Quick-Reading 100ths
24" Heavy Spring-Tempered Steel Rules with Inch Graduations
Cat. No. EDP Length Width x Thickness Graduations Feature Remarks
C404R-24 51484 24" 1-1/4 x 1/10" 4R – 8ths, 16ths, Quick-Reading 32nds and 64ths
CH404R-24 51494 With Hook
C416R-24 51509 24" 1-1/4 x 1/10" 16R – Quick-Reading 32nds, 64ths, Aircraft Quick-Reading 50ths and 100ths
CH416R-24 51519 With Hook
All C404R and C416R Rules furnished with hole in end for hanging.
† Includes redemption card for Standard Letter of Certification (SLC).
* Indicates rules with single row of inch figures (all rules under 1" width). Rules without asterisk have double row of inch figures, and each edge represents the bottom edge reading left to right (rules 1" and wider).

starrett.com 291
