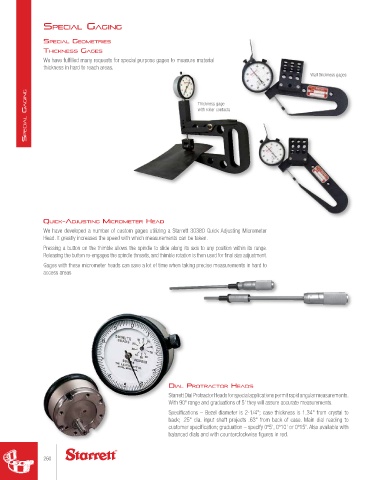

specIAl GAGInG

specIAl GeoMetrIes
tHIcKness GAGes
We have fulfilled many requests for special purpose gages to measure material
thickness in hard to reach areas.
Wall thickness gages

Special GaGinG Thickness gage

with roller contacts

quIcK-AdjustInG MIcroMeter HeAd
We have developed a number of custom gages utilizing a Starrett 30380 Quick Adjusting Micrometer
Head. It greatly increases the speed with which measurements can be taken.
Pressing a button on the thimble allows the spindle to slide along its axis to any position within its range.
Releasing the button re-engages the spindle threads, and thimble rotation is then used for final size adjustment.
Gages with these micrometer heads can save a lot of time when taking precise measurements in hard to
access areas

dIAl protrActor HeAds
Starrett Dial Protractor Heads for special applications permit rapid angular measurements.
With 90º range and graduations of 5' they will assure accurate measurements.
Specifications – Bezel diameter is 2-1/4"; case thickness is 1.34" from crystal to
back; .25" dia. input shaft projects .63" from back of case. Main dial reading to
customer specification; graduation – specify 0º5', 0º10' or 0º15'. Also available with
balanced dials and with counterclockwise figures in red.
