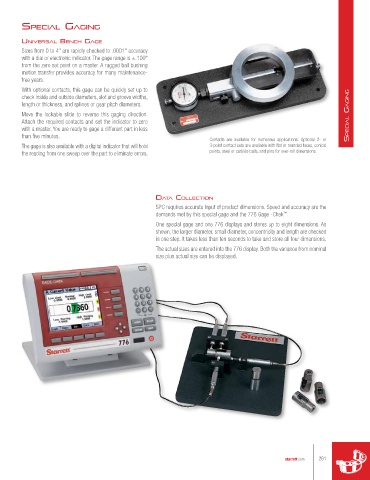

specIAl GAGInG

unIversAl bencH GAGe
Sizes from 0 to 4" are rapidly checked to .0001" accuracy
with a dial or electronic indicator. The gage range is ±.100"
from the zero set point on a master. A rugged ball bushing
motion transfer provides accuracy for many maintenance-
free years.
With optional contacts, this gage can be quickly set up to
check inside and outside diameters, slot and groove widths,
length or thickness, and splines or gear pitch diameters.
Move the lockable slide to reverse this gaging direction. Special GaGinG
Attach the required contacts and set the indicator to zero
with a master. You are ready to gage a different part in less
than five minutes.
Contacts are available for numerous applications. Optional 2- or
The gage is also available with a digital indicator that will hold 3-point contact sets are available with flat or rounded faces, conical
the reading from one sweep over the part to eliminate errors. points, steel or carbide balls, and pins for over-roll dimensions.

dAtA collectIon
SPC requires accurate input of product dimensions. Speed and accuracy are the
™
demands met by this special gage and the 776 Gage -Chek .
One special gage and one 776 displays and stores up to eight dimensions. As
shown, the larger diameter, small diameter, concentricity and length are checked
in one step. It takes less than ten seconds to take and store all four dimensions.

The actual sizes are entered into the 776 display. Both the variance from nominal
size plus actual size can be displayed.

starrett.com 261
