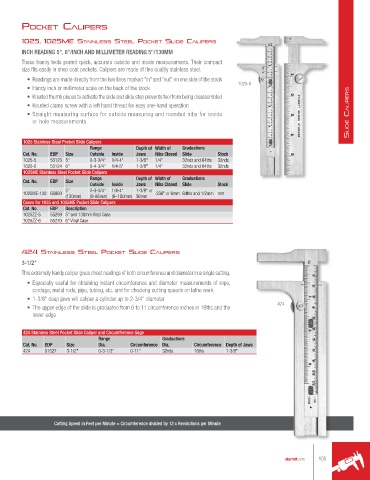

pocKet cAlIpers

1025, 1025Me stAInless steel pocKet slIde cAlIpers
INCH READING 5", 6"/INCH AND MILLIMETER READING 5"/130MM
These handy tools permit quick, accurate outside and inside measurements. Their compact
size fits easily in shop coat pockets. Calipers are made of fine quality stainless steel.
• Readings are made directly from the two lines marked "in" and "out" on one side of the stock
• Handy inch or millimeter scale on the back of the stock 1025-6
• Knurled thumb pieces to activate the slide and slide stop prevents tool from being disassembled
• Knurled clamp screw with a left hand thread for easy one-hand operation
• Straight measuring surface for outside measuring and rounded nibs for inside Slide CaliperS
or hole measurements

1025 Stainless Steel Pocket Slide Calipers
Range Depth of Width of Graduations
Cat. No. EDP Size Outside Inside Jaws Nibs Closed Slide Stock
1025-5 53123 5" 0-3-3/4" 1/4-4" 1-3/8" 1/4" 32nds and 64ths 32nds
1025-6 53124 6" 0-4-3/4" 1/4-5" 1-3/8" 1/4" 32nds and 64ths 32nds
1025ME Stainless Steel Pocket Slide Calipers
Range Depth of Width of Graduations
Cat. No. EDP Size
Outside Inside Jaws Nibs Closed Slide Stock
5" 0-3-3/4" 1/4-4" 1-3/8" or
1025ME-130 65860 .236" or 6mm 64ths and 1/2mm mm
(130mm) (0-96mm) (6–100mm) 36mm
Cases for 1025 and 1025ME Pocket Slide Calipers
Cat. No. EDP Description
1025ZZ-5 55269 5" and 130mm Vinyl Case
1025ZZ-6 55270 6" Vinyl Case

424 stAInless steel pocKet slIde cAlIpers
3-1/2"
This extremely handy caliper gives direct readings of both circumference and diameter in a single setting.
• Especially useful for obtaining instant circumference and diameter measurements of rope,
cordage, metal rods, pipe, tubing, etc. and for checking cutting speeds on lathe work
• 1-3/8" deep jaws will caliper a cylinder up to 2-3/4" diameter
424
• The upper edge of the slide is graduated from 0 to 11 circumference inches in 16ths and the
lower edge

424 Stainless Steel Pocket Slide Caliper and Circumference Gage
Range Graduations
Cat. No. EDP Size Dia. Circumference Dia. Circumference Depth of Jaws
424 51527 3-1/2" 0-3-1/2" 0-11" 32nds 16ths 1-3/8"

Cutting Speed in Feet per Minute = Circumference divided by 12 x Revolutions per Minute
