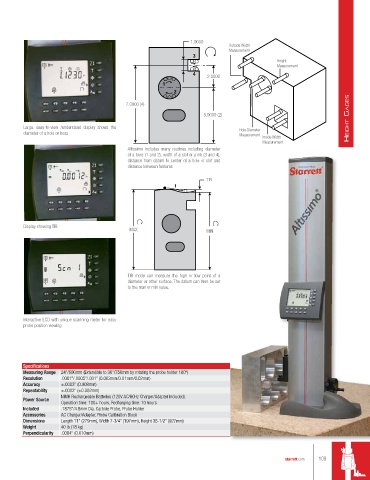

Page 109 - catalgo33

1.0000
Outside Width
Measurement
3
Height
Measurement
4 2.0000
1
2

7.0000 (4)
5.0000 (2) HeigHt gages

Large, easy-to-view /understand display shows the Hole Diameter
diameter of a hole or boss Measurement
Inside Width
Measurement
Altissimo includes many routines including diameter
of a bore (1 and 2), width of a slot or a rib (3 and 4),
distance from datum to center of a hole or slot and
distance between features
TIR
1

Display showing TIR
MAX MIN

TIR mode can measure the high or low point of a
diameter or other surface. The datum can then be set
to the max or min value.

Interactive LCD with unique scanning meter for easy
probe position viewing

Specifications
Measuring Range 24"/600mm (Extendible to 30"/750mm by rotating the probe holder 180º)
Resolution .0001"/.0005"/.001" (0.002mm/0.01mm/0.02mm)
Accuracy ±.0003" (0.008mm)
Repeatability ±.0002" (±0.002mm)
NiMH Rechargeable Batteries (120V AC/60Hz Charger/Adapter included).
Power Source
Operation time: 100+ hours, Recharging time: 10 hours
Included .1875"/4.8mm Dia. Carbide Probe, Probe Holder
Accessories AC Charger/Adapter, Probe Calibration Block
Dimensions Length 11" (279mm), Width 7-3/4" (197mm), Height 36-1/2" (927mm)
Weight 40 lb (18 kg)
Perpendicularity .0004" (0.010mm)

starrett.com 109
