electronIc HeIGHt GAGes
New!

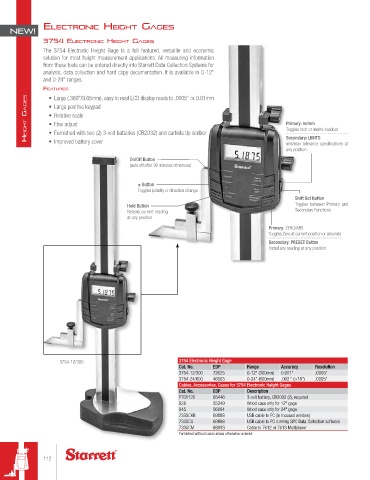

3754 electronIc HeIGHt GAGes
The 3754 Electronic Height Gage is a full featured, versatile and economic
solution for most height measurement applications. All measuring information
from these tools can be entered directly into Starrett Data Collection Systems for
analysis, data collection and hard copy documentation. It is available in 0-12"
and 0-24" ranges.
feAtures
• Large (.380"/9.65mm), easy to read LCD display reads to .0005" or 0.01mm
HeigHt gages • Large positive keypad Primary: In/mm
• Relative scale
• Fine adjust
Toggles Inch or metric readout
• Furnished with two (2) 3-volt batteries (CR2032) and carbide tip scriber
Secondary: LIMITS
• Improved battery cover
min/max tolerance specifications at
any position
On/Off Button
(auto off after 30 minutes of nonuse)

± Button
Toggles polarity or direction change
Shift Set Button
Hold Button Toggles between Primary and
Retains current reading Secondary Functions
at any position
Primary: ZERO/ABS
Toggles Zero at current position or absolute
Secondary: PRESET Button
Install any reading at any position

3754-12/300 3754 Electronic Height Gage
Cat. No. EDP Range Accuracy Resolution
3754-12/300 72625 0-12" (300mm) 0.001" .0005"
3754-24/600 46003 0-24" (600mm) .002 " (>18") .0005"
Cables, Accessories, Cases for 3754 Electronic Height Gages
Cat. No. EDP Description
PT61120 65446 3-volt battery, CR2032 (2), required
928 55249 Wood case only for 12" gage
945 56684 Wood case only for 24" gage
733SCKB 69888 USB cable to PC (In focused window)
733SCU 69898 USB cable to PC running SPC Data Collection software
733SCM 69893 Cable to 7612 or 7613 Multiplexer
Furnished without case unless otherwise ordered.
