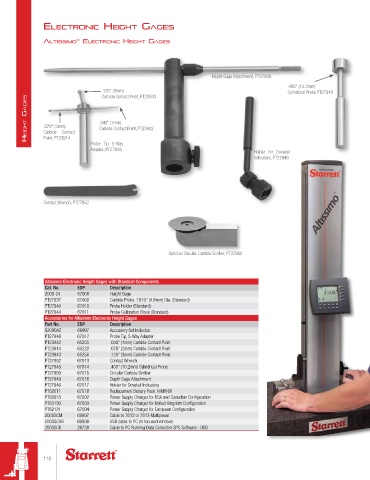

electronIc HeIGHt GAGes

®
AltIssIMo electronIc HeIGHt GAGes

Depth Gage Attachment, PT27949
.400" (10.2mm)
.120" (3mm) Cylindrical Probe PT27945
Carbide Contact Point, PT23943
HeigHt gages .078" (2mm) .040" (1mm)

Carbide Contact Point, PT23942
Carbide Contact
Point, PT23914
Probe Tip 5-Way
Adapter, PT27948
Holder for Dovetail
Indicators, PT27946

Contact Wrench, PT27952

Optional Circular Carbide Scriber, PT27950

Altissimo Electronic Height Gages with Standard Components
Cat. No. EDP Description
2000-24 67008 Height Gage
PT27937 67009 Carbide Probe .1875" (4.8mm) Dia. (Standard)
PT27940 67010 Probe Holder (Standard)
PT27944 67011 Probe Calibration Block (Standard)
Accessories for Altissimo Electronic Height Gages
Part No. EDP Description
S2000AZ 66997 Accessory Set Includes:
PT27948 67012 Probe Tip, 5-Way Adapter
PT23942 65255 .040" (1mm) Carbide Contact Point
PT23914 64222 .078" (2mm) Carbide Contact Point
PT23943 65256 .120" (3mm) Carbide Contact Point
PT27952 67013 Contact Wrench
PT27945 67014 .400" (10.2mm) Cylindrical Probe
PT27950 67015 Circular Carbide Scriber
PT27949 67016 Depth Gage Attachment
PT27946 67017 Holder for Dovetail Indicators
PT62011 67018 Replacement Battery Pack, NiMH 6V
PT62015 67002 Power Supply Charger for USA and Canadian Configuration
PT62130 67003 Power Supply Charger for United Kingdom Configuration
PT62131 67004 Power Supply Charger for European Configuration
2000SCM 69907 Cable to 7612 or 7613 Multiplexer
2000SCKB 69908 USB cable to PC (In focused window)
2000SCU 29728 Cable to PC Running Data Collection SPC Software - USB
