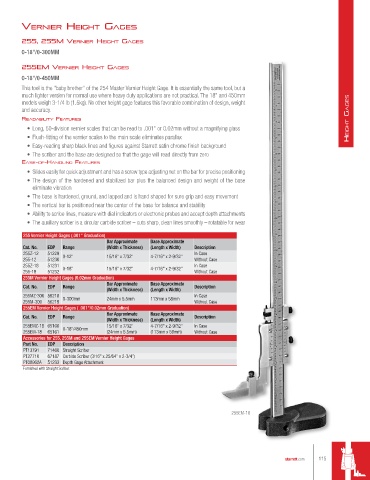

Page 115 - catalgo33

vernIer HeIGHt GAGes

255, 255M vernIer HeIGHt GAGes
0-18"/0-300MM

255eM vernIer HeIGHt GAGes
0-18"/0-450MM
This tool is the "baby brother" of the 254 Master Vernier Height Gage. It is essentially the same tool, but a
much lighter version for normal use where heavy duty applications are not practical. The 18" and 450mm
models weigh 3-1/4 lb (1.5kg). No other height gage features this favorable combination of design, weight
and accuracy.
reAdAbIlIty feAtures HeigHt gages
• Long, 50-division vernier scales that can be read to .001" or 0.02mm without a magnifying glass
• Flush-fitting of the vernier scales to the main scale eliminates parallax
• Easy-reading sharp black lines and figures against Starrett satin chrome finish background
• The scriber and the base are designed so that the gage will read directly from zero
eAse-of-HAndlInG feAtures
• Slides easily for quick adjustment and has a screw type adjusting nut on the bar for precise positioning
• The design of the hardened and stabilized bar plus the balanced design and weight of the base
eliminate vibration
• The base is hardened, ground, and lapped and is hand shaped for sure grip and easy movement
• The vertical bar is positioned near the center of the base for balance and stability
• Ability to scribe lines, measure with dial indicators or electronic probes and accept depth attachments
• The auxiliary scriber is a circular carbide scriber – cuts sharp, clean lines smoothly – rotatable for wear

255 Vernier Height Gages (.001" Graduation)
Bar Approximate Base Approximate
Cat. No. EDP Range (Width x Thickness) (Length x Width) Description
255Z-12 51229 0-12" 15/16" x 7/32" 4-7/16" x 2-9/32" In Case
255-12 51230 Without Case
255Z-18 51231 0-18" 15/16" x 7/32" 4-7/16" x 2-9/32" In Case
255-18 51232 Without Case
255M Vernier Height Gages (0.02mm Graduation)
Bar Approximate Base Approximate
Cat. No. EDP Range Description
(Width x Thickness) (Length x Width)
255MZ-300 56218 0-300mm 24mm x 5.5mm 113mm x 58mm In Case
255M-300 56219 Without Case
255EM Vernier Height Gages ( .001"/0.02mm Graduation)
Bar Approximate Base Approximate
Cat. No. EDP Range Description
(Width x Thickness) (Length x Width)
255EMZ-18 65160 0-18"/450mm 15/16" x 7/32" 4-7/16" x 2-9/32" In Case
255EM-18 65161 (24mm x 5.5mm) (113mm x 58mm) Without Case
Accessories for 255, 255M and 255EM Vernier Height Gages
Part No. EDP Description
PT13791 71460 Straight Scriber
PT27710 67187 Carbide Scriber (3/16" x 25/64" x 2-3/4")
PT08962A 51233 Depth Gage Attachment
Furnished with Straight Scriber.

255EM-18
