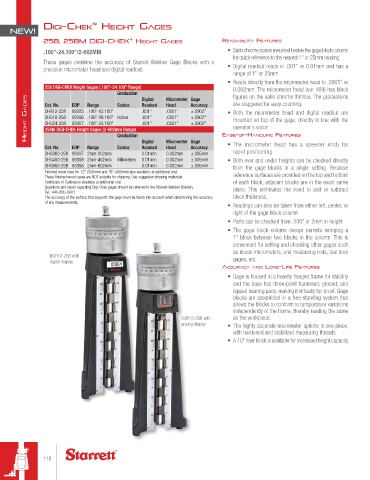

dIGI-cHeK HeIGHt GAGes
New!
™
258, 258M dIGI-cHeK HeIGHt GAGes reAdAbIlIty feAtures
.100"-24.100"/2-602MM • Satin chrome scales mounted beside the gage block column
for quick reference to the nearest 1" or 25mm reading
These gages combine the accuracy of Starrett-Webber Gage Blocks with a
precision micrometer head and digital readout. • Digital readout reads in .001" or 0.01mm and has a
range of 1" or 25mm
• Reads directly from the micrometer head to .0001" or
258 DIGI-CHEK Height Gages (.100"-24.100" Range) 0.002mm. The micrometer head (our 469) has black
Graduation Digital Micrometer Gage figures on the satin chrome thimble. The graduations
HeigHt gages DHG12-258 93005 .100"-12.100" Inches .001" .0001" ±.0002" • Both the micrometer head and digital readout are
are staggered for easy counting.
EDP
Range
Head
Accuracy
Scales
Readout
Cat. No.
.001"
93006 .100"-18.100"
.0001"
DHG18-258
±.0002"
mounted on top of the gage, directly in line with the
.001"
.0001"
DHG24-258
±.0002"
93357 .100"-24.100"
operator's vision
258M DIGI-CHEK Height Gages (2-602mm Range)
• The micrometer head has a speeder knob for
Cat. No. EDP Range Graduation Digital Micrometer Gage eAse-of-HAndlInG feAtures
Accuracy
Head
Scales
Readout
DHG300-258 93007 2mm-302mm 0.01mm 0.002mm ±.005mm rapid positioning
DHG450-258 93008 2mm-452mm Millimeters 0.01mm 0.002mm ±.005mm • Both over and under heights can be checked directly
DHG600-258 93358 2mm-602mm 0.01mm 0.002mm ±.005mm from the gage blocks in a single setting. Because
Finished wood case for 12" (300mm) and 18" (450mm) also available, at additional cost. reference surfaces are provided on the top and bottom
These finished wood cases are NOT suitable for shipping. Use suggested shipping materials.
Certificate of Calibration available at additional cost. of each block, adjacent blocks are in the exact same
Questions and repair regarding Digi-Chek gages should be referred to the Starrett-Webber Division, plane. This eliminates the need to add or subtract
Tel.: 440-835-0001.
The accuracy of the surface that supports the gage must be taken into account when determining the accuracy block thickness.
of any measurements.
• Readings can also be taken from either left, center, or
right of the gage block column
• Parts can be checked from .100" or 2mm in height
• The gage block column design permits wringing a
1" block between two blocks in the column. This is
convenient for setting and checking other gages such
as inside micrometers, end measuring rods, dial bore
DGH12-258 with gages, etc.
digital display
AccurAcy And lonG-lIfe feAtures
• Gage is housed in a heavily flanged frame for stability
and the base has three-point hardened, ground, and
lapped bearing pads, making it virtually tip-proof. Gage
blocks are assembled in a free-standing system that
allows the blocks to conform to temperature variations
independently of the frame, thereby reading the same
DGH12-258 with as the workpiece.
analog display • The highly accurate micrometer spindle is one piece,
with hardened and stabilized measuring threads
• A 10" riser block is available for increased height capacity
