electronIc bore GAGes
New!

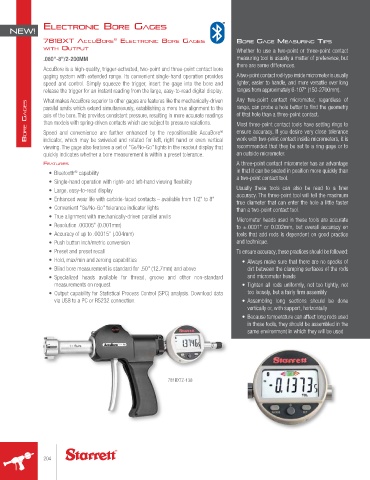

781bxt Accubore electronIc bore GAGes bore GAGe MeAsurInG tIps
®
WItH output Whether to use a two-point or three-point contact
.080"-8"/2-200MM measuring tool is usually a matter of preference, but
there are some differences.
AccuBore is a high-quality, trigger-activated, two-point and three-point contact bore
gaging system with extended range. Its convenient single-hand operation provides A two-point contact rod-type inside micrometer is usually
speed and control. Simply squeeze the trigger, insert the gage into the bore and lighter, easier to handle, and more versatile over long
release the trigger for an instant reading from the large, easy-to-read digital display. ranges from approximately 6-107" (150-2700mm).
Any two-point contact micrometer, regardless of
What makes AccuBore superior to other gages are features like the mechanically-driven
Bore GaGes parallel anvils which extend simultaneously, establishing a more true alignment to the range, can probe a hole better to find the geometry
of that hole than a three-point contact.
axis of the bore. This provides consistent pressure, resulting in more accurate readings
than models with spring-driven contacts which are subject to pressure variations.
Most three-point contact tools have setting rings to
ensure accuracy. If you desire very close tolerance
®
Speed and convenience are further enhanced by the repositionable AccuBore
indicator, which may be swiveled and rotated for left, right hand or even vertical
recommended that they be set to a ring gage or to
viewing. The gage also features a set of "Go/No-Go" lights in the readout display that work with two-point contact inside micrometers, it is
quickly indicates whether a bore measurement is within a preset tolerance. an outside micrometer.
feAtures A three-point contact micrometer has an advantage
• Bluetooth capability in that it can be seated in position more quickly than
®
• Single-hand operation with right- and left-hand viewing flexibility a two-point contact tool.
• Large, easy-to-read display Usually these tools can also be read to a finer
• Enhanced wear life with carbide-faced contacts – available from 1/2" to 8" accuracy. The three-point tool will tell the maximum
true diameter that can enter the hole a little faster
• Convenient "Go/No-Go" tolerance indicator lights than a two-point contact tool.
• True alignment with mechanically-driven parallel anvils Micrometer heads used in these tools are accurate
• Resolution .00005" (0.001mm) to ±.0001" or 0.002mm, but overall accuracy on
• Accuracy of up to .00015" (.004mm) tools that add rods is dependent on good practice
• Push button inch/metric conversion and technique.
• Preset and preset recall To ensure accuracy, these practices should be followed:
• Hold, max/min and zeroing capabilities • Always make sure that there are no specks of
• Blind bore measurement is standard for .50" (12.7mm) and above dirt between the clamping surfaces of the rods
• Specialized heads available for thread, groove and other non-standard and micrometer heads
measurements on request • Tighten all rods uniformly, not too tightly, not
• Output capability for Statistical Process Control (SPC) analysis. Download data too loosely, but a fairly firm assembly
via USB to a PC or RS232 connection. • Assembling long sections should be done
vertically or, with support, horizontally
• Because temperature can affect long rods used
in these tools, they should be assembled in the
same environment in which they will be used

781BXTZ-138
