IndIcAtor dIAMeter GAGes
D
B
C 1127

IndIca tors and GaGes
A

F G
E

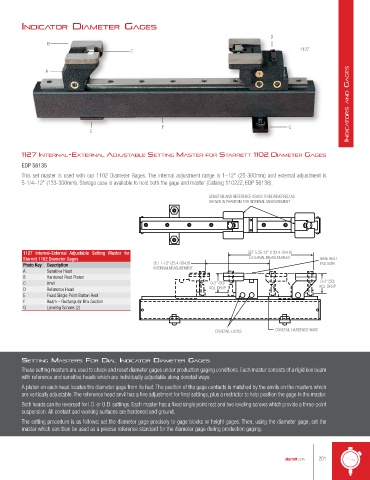

1127 InternAl-externAl AdjustAble settInG MAster for stArrett 1102 dIAMeter GAGes
EDP 56135

This set master is used with our 1102 Diameter Gages. The internal adjustment range is 1–12" (25-300mm) and external adjustment is
5-1/4–12" (133-300mm). Storage case is available to hold both the gage and master (Catalog 1102ZZ, EDP 56136).

SENSITIVE AND REFERENCE HEADS TO BE REVERSED AS
SHOWN IN PHANTOM FOR INTERNAL MEASUREMENT

1127 Internal-External Adjustable Setting Master for SET 5.25-12" (133.4-304.8)
Starrett 1102 Diameter Gages EXTERNAL MEASUREMENT GAGE REST
Photo Key Description SET 1-12" (25.4-304.8) PAD SURF.
A Sensitive Head INTERNALMEASUREMENT
B Hardened Rest Platen
0-2" (50)
C Anvil 0-2" (50) ADJ. DROP
D Reference Head ADJ. DROP
E Fixed Single Point Button Rest
F Beam – Rectangular Box Section
G Leveling Screws (2)

DOVETAIL LOCKS DOVETAIL HARDENED WAYS

settInG MAsters for dIAl IndIcAtor dIAMeter GAGes
These setting masters are used to check and reset diameter gages under production gaging conditions. Each master consists of a rigid box beam
with reference and sensitive heads which are individually adjustable along dovetail ways.
A platen on each head locates the diameter gage from its feet. The position of the gage contacts is matched by the anvils on the masters which
are vertically adjustable. The reference head anvil has a fine adjustment for final settings, plus a restrictor to help position the gage in the master.
Both heads can be reversed for I.D. or O.D. settings. Each master has a fixed single point rest and two leveling screws which provide a three-point
suspension. All contact and working surfaces are hardened and ground.
The setting procedure is as follows: set the diameter gage precisely to gage blocks or height gages. Then, using the diameter gage, set the
master which can then be used as a precise reference standard for the diameter gage during production gaging.
