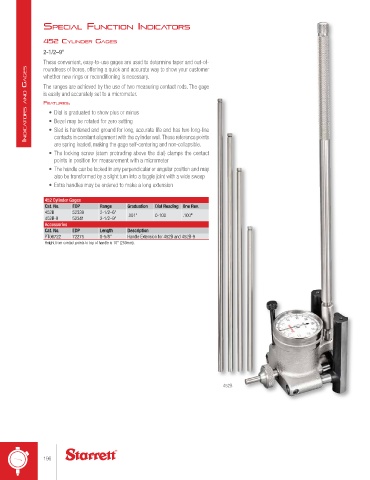

Page 196 - catalgo33

specIAl functIon IndIcAtors

452 cylInder GAGes
2-1/2–9"
These convenient, easy-to-use gages are used to determine taper and out-of-
IndIca tors and GaGes The ranges are achieved by the use of two measuring contact rods. The gage
roundness of bores, offering a quick and accurate way to show your customer
whether new rings or reconditioning is necessary.

is easily and accurately set to a micrometer.
feAtures:
• Dial is graduated to show plus or minus
• Bezel may be rotated for zero setting
• Sled is hardened and ground for long, accurate life and has two long-line
contacts in constant alignment with the cylinder wall. These reference points
are spring loaded, making the gage self-centering and non-collapsible.
• The locking screw (stem protruding above the dial) clamps the contact
points in position for measurement with a micrometer
• The handle can be locked in any perpendicular or angular position and may
also be transformed by a slight turn into a toggle joint with a wide sweep
• Extra handles may be ordered to make a long extension

452 Cylinder Gages
Cat. No. EDP Range Graduation Dial Reading One Rev.
452B 52339 2-1/2–6" .001" 0-100 .100"
452B-9 52341 2-1/2–9"
Accessories
Cat. No. EDP Length Description
PT06722 72275 8-5/8" Handle Extension for 452B and 452B-9
Height from contact points to top of handle is 10" (250mm).

452B
