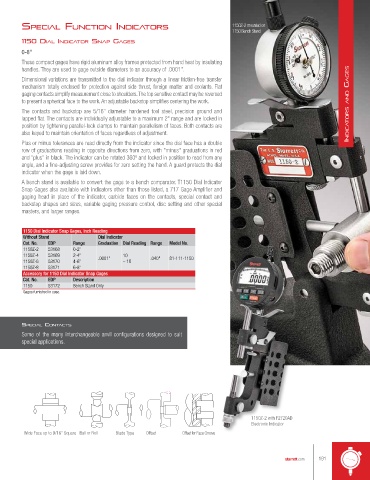

specIAl functIon IndIcAtors 1150Z-2 mounted on
1150 Bench Stand
1150 dIAl IndIcAtor snAp GAGes
0-8"
These compact gages have rigid aluminum alloy frames protected from hand heat by insulating
handles. They are used to gage outside diameters to an accuracy of .0001".
Dimensional variations are transmitted to the dial indicator through a linear friction-free transfer
mechanism totally enclosed for protection against side thrust, foreign matter and coolants. Flat
gaging contacts simplify measurement close to shoulders. The top sensitive contact may be reversed
to present a spherical face to the work. An adjustable backstop simplifies centering the work. IndIca tors and GaGes
The contacts and backstop are 5/16" diameter hardened tool steel, precision ground and
lapped flat. The contacts are individually adjustable to a maximum 2" range and are locked in
position by tightening parallel-lock clamps to maintain parallelism of faces. Both contacts are
also keyed to maintain orientation of faces regardless of adjustment.
Plus or minus tolerances are read directly from the indicator since the dial face has a double
row of graduations reading in opposite directions from zero, with "minus" graduations in red
and "plus" in black. The indicator can be rotated 360º and locked in position to read from any
angle, and a fine-adjusting screw provides for zero setting the hand. A guard protects the dial
indicator when the gage is laid down.
A bench stand is available to convert the gage to a bench comparator. T1150 Dial Indicator
Snap Gages also available with indicators other than those listed, a 717 Gage Amplifier and
gaging head in place of the indicator, carbide faces on the contacts, special contact and
backstop shapes and sizes, variable gaging pressure control, disc setting and other special
masters, and larger ranges.

1150 Dial Indicator Snap Gages, Inch Reading
Without Stand Dial Indicator
Cat. No. EDP Range Graduation Dial Reading Range Model No.
1150Z-2 53168 0-2"
1150Z-4 53169 2-4" .0001" 10 .040" 81-111-1150
1150Z-6 53170 4-6" – 10
1150Z-8 53171 6-8"
Accessory for 1150 Dial Indicator Snap Gages
Cat. No. EDP Description
1150 53172 Bench Stand Only
Gages furnished in case.

specIAl contActs
Some of the many interchangeable anvil configurations designed to suit
special applications.

1150Z-2 with F2720AD
Electronic Indicator
Wide Face up to 9/16" Square Ball or Roll Blade Type Offset Offset for Face Groove
