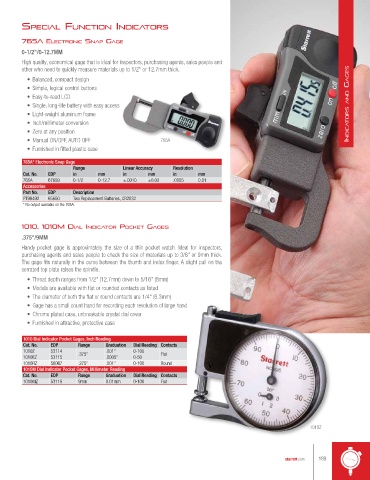

Page 189 - catalgo33

specIAl functIon IndIcAtors

765A electronIc snAp GAGe
0-1/2"/0-12.7MM
High quality, economical gage that is ideal for inspectors, purchasing agents, sales people and
other who need to quickly measure materials up to 1/2" or 12.7mm thick.
• Balanced, compact design
• Simple, logical control buttons
• Easy-to-read LCD
• Single, long-life battery with easy access IndIca tors and GaGes
• Light-weight aluminum frame
• Inch/millimeter conversion
• Zero at any position
• Manual ON/OFF, AUTO OFF 765A
• Furnished in fitted plastic case

765A* Electronic Snap Gage
Range Linear Accuracy Resolution
Cat. No. EDP in mm in mm in mm
765A 67659 0-1/2 0-12.7 ±.0010 ±0.02 .0005 0.01
Accessories
Part No. EDP Description
PT99492 65650 Two Replacement Batteries, CR2032
* No output available on the 765A.

1010, 1010M dIAl IndIcAtor pocKet GAGes
.375"/9MM
Handy pocket gage is approximately the size of a thin pocket watch. Ideal for inspectors,
purchasing agents and sales people to check the size of materials up to 3/8" or 9mm thick.
The gage fits naturally in the curve between the thumb and index finger. A slight pull on the
serrated top plate raises the spindle.
• Throat depth ranges from 1/2" (12.7mm) down to 5/16" (8mm)
• Models are available with flat or rounded contacts as listed
• The diameter of both the flat or round contacts are 1/4" (6.3mm)
• Gage has a small count hand for recording each revolution of large hand
• Chrome plated case, unbreakable crystal dial cover
• Furnished in attractive, protective case

1010 Dial Indicator Pocket Gages, Inch Reading
Cat. No. EDP Range Graduation Dial Reading Contacts
1010Z 53114 .375" .001" 0-100 Flat
1010EZ 53115 .0005" 0-50
1010RZ 56067 .275" .001" 0-100 Round
1010M Dial Indicator Pocket Gages, Millimeter Reading
Cat. No. EDP Range Graduation Dial Reading Contacts
1010MZ 53116 9mm 0.01mm 0-100 Flat

1010Z

starrett.com 189
