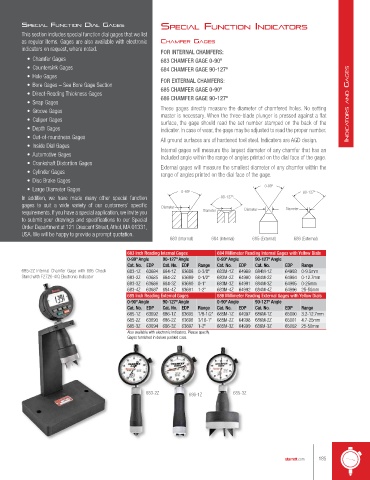

Page 185 - catalgo33

specIAl functIon dIAl GAGes specIAl functIon IndIcAtors
This section includes special function dial gages that we list
as regular items. Gages are also available with electronic cHAMfer GAGes
indicators on request, where noted.
FOR INTERNAL CHAMFERS:
• Chamfer Gages 683 CHAMFER GAGE 0-90º
• Countersink Gages 684 CHAMFER GAGE 90-127º
• Hole Gages
• Bore Gages – See Bore Gage Section FOR EXTERNAL CHAMFERS:
685 CHAMFER GAGE 0-90º
• Direct-Reading Thickness Gages
• Snap Gages 686 CHAMFER GAGE 90-127º IndIca tors and GaGes
• Groove Gages These gages directly measure the diameter of chamfered holes. No setting
master is necessary. When the three-blade plunger is pressed against a flat
• Caliper Gages surface, the gage should read the set number stamped on the back of the
• Depth Gages indicator. In case of wear, the gage may be adjusted to read the proper number.
• Out-of-roundness Gages All ground surfaces are of hardened tool steel. Indicators are AGD design.
• Inside Dial Gages Internal gages will measure the largest diameter of any chamfer that has an
• Automotive Gages included angle within the range of angles printed on the dial face of the gage.
• Crankshaft Distortion Gages External gages will measure the smallest diameter of any chamfer within the
• Cylinder Gages range of angles printed on the dial face of the gage.
• Disc Brake Gages
• Large Diameter Gages 0-90º 0-90º 90-127º
In addition, we have made many other special function 90-127º
gages to suit a wide variety of our customers' specific Diameter
requirements. If you have a special application, we invite you Diameter Diameter Diameter
to submit your drawings and specifications to our Special
Order Department at 121 Crescent Street, Athol, MA 01331,
USA. We will be happy to provide a prompt quotation.
683 (Internal) 684 (Internal) 685 (External) 686 (External)

683 Inch Reading Internal Gages 684 Millimeter Reading Internal Gages with Yellow Dials
0-90º Angle 90-127º Angle 0-90º Angle 90-127º Angle
Cat. No. EDP Cat. No. EDP Range Cat. No. EDP Cat. No. EDP Range
685-2Z Internal Chamfer Gage with 695 Check 683-1Z 63684 684-1Z 63688 0-3/8" 683M-1Z 64989 684M-1Z 64993 0-9.5mm
Stand with F2720-4IQ Electronic Indicator 683-2Z 63685 684-2Z 63689 0-1/2" 683M-2Z 64990 684M-2Z 64994 0-12.7mm
683-3Z 63686 684-3Z 63690 0-1" 683M-3Z 64991 684M-3Z 64995 0-25mm
683-4Z 63687 684-4Z 63691 1-2" 683M-4Z 64992 684M-4Z 64996 25-50mm
685 Inch Reading External Gages 686 Millimeter Reading External Gages with Yellow Dials
0-90º Angle 90-127º Angle 0-90º Angle 90-127º Angle
Cat. No. EDP Cat. No. EDP Range Cat. No. EDP Cat. No. EDP Range
685-1Z 63692 686-1Z 63695 1/8-1/2" 685M-1Z 64997 686M-1Z 65000 3.2-12.7mm
685-2Z 63693 686-2Z 63696 3/16-1" 685M-2Z 64998 686M-2Z 65001 4.7-25mm
685-3Z 63694 686-3Z 63697 1-2" 685M-3Z 64999 686M-3Z 65002 25-50mm
Also available with electronic indicators. Please specify.
Gages furnished in deluxe padded case.

683-2Z 686-1Z 685-3Z
