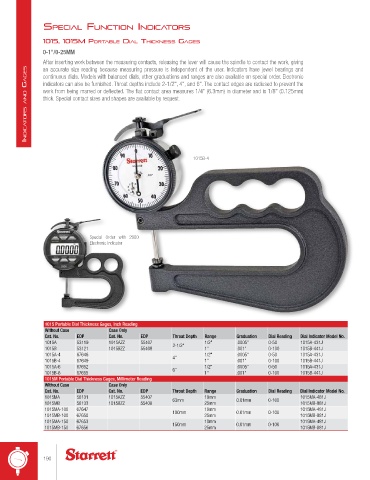

Page 190 - catalgo33

specIAl functIon IndIcAtors

1015, 1015M portAble dIAl tHIcKness GAGes
0-1"/0-25MM
After inserting work between the measuring contacts, releasing the lever will cause the spindle to contact the work, giving
IndIca tors and GaGes indicators can also be furnished. Throat depths include 2-1/2", 4", and 6". The contact edges are radiused to prevent the
an accurate size reading because measuring pressure is independent of the user. Indicators have jewel bearings and
continuous dials. Models with balanced dials, other graduations and ranges are also available on special order. Electronic
work from being marred or deflected. The flat contact area measures 1/4" (6.3mm) in diameter and is 1/8" (0.125mm)
thick. Special contact sizes and shapes are available by request.

1015B-4

Special Order with 2900
Electronic Indicator

1015 Portable Dial Thickness Gages, Inch Reading
Without Case Case Only
Cat. No. EDP Cat. No. EDP Throat Depth Range Graduation Dial Reading Dial Indicator Model No.
1015A 53119 1015AZZ 55407 2-1/2" 1/2" .0005" 0-50 1015A-431J
1015B 53121 1015BZZ 55408 1" .001" 0-100 1015B-441J
1015A-4 67646 4" 1/2" .0005" 0-50 1015A-431J
1015B-4 67649 1" .001" 0-100 1015B-441J
1015A-6 67652 6" 1/2" .0005" 0-50 1015A-431J
1015B-6 67655 1" .001" 0-100 1015B-441J
1015M Portable Dial Thickness Gages, Millimeter Reading
Without Case Case Only
Cat. No. EDP Cat. No. EDP Throat Depth Range Graduation Dial Reading Dial Indicator Model No.
1015MA 56131 1015AZZ 55407 63mm 10mm 0.01mm 0-100 1015MA-481J
1015MB 56133 1015BZZ 55408 25mm 1015MB-881J
1015MA-100 67647 100mm 10mm 0.01mm 0-100 1015MA-481J
1015MB-100 67650 25mm 1015MB-881J
1015MA-150 67653 150mm 10mm 0.01mm 0-100 1015MA-481J
1015MB-150 67656 25mm 1015MB-881J

190
