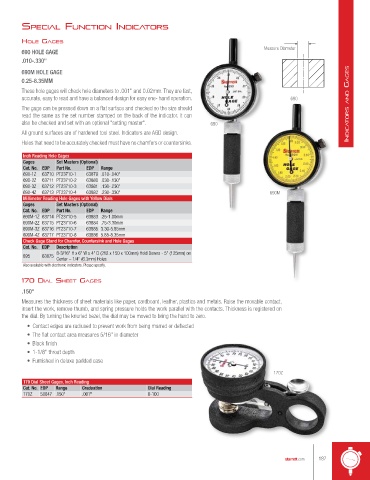

specIAl functIon IndIcAtors

Hole GAGes
Measure Diameter
690 HOLE GAGE
.010-.330"
690M HOLE GAGE
0.25-8.35MM
These hole gages will check hole diameters to .001" and 0.02mm. They are fast,
accurate, easy to read and have a balanced design for easy one- hand operation. 690
The gage can be pressed down on a flat surface and checked so the size should IndIca tors and GaGes
read the same as the set number stamped on the back of the indicator. It can
also be checked and set with an optional "setting master". 690
All ground surfaces are of hardened tool steel. Indicators are AGD design.
Holes that need to be accurately checked must have no chamfers or countersinks.

Inch Reading Hole Gages
Gages Set Masters (Optional)
Cat. No. EDP Part No. EDP Range
690-1Z 63710 PT23710-1 63879 .010-.040"
690-2Z 63711 PT23710-2 63880 .030-.130"
690-3Z 63712 PT23710-3 63881 .130-.230"
690-4Z 63713 PT23710-4 63882 .230-.330" 690M
Millimeter Reading Hole Gages with Yellow Dials
Gages Set Masters (Optional)
Cat. No. EDP Part No. EDP Range
690M-1Z 63714 PT23710-5 63883 .25-1.00mm
690M-2Z 63715 PT23710-6 63884 .75-3.30mm
690M-3Z 63716 PT23710-7 63885 3.30-5.85mm
690M-4Z 63717 PT23710-8 63886 5.85-8.35mm
Check Gage Stand for Chamfer, Countersink and Hole Gages
Cat. No. EDP Description
8-3/16" H x 6" W x 4" D (212 x 150 x 100mm) Hold Downs - 5" (125mm) on
695 63875
Center – 1/4" (6.3mm) Holes
Also available with electronic indicators. Please specify.

170 dIAl sHeet GAGes
.150"
Measures the thickness of sheet materials like paper, cardboard, leather, plastics and metals. Raise the movable contact,
insert the work, remove thumb, and spring pressure holds the work parallel with the contacts. Thickness is registered on
the dial. By turning the knurled bezel, the dial may be moved to bring the hand to zero.
• Contact edges are radiused to prevent work from being marred or deflected
• The flat contact area measures 5/16" in diameter
• Black finish
• 1-1/8" throat depth
• Furnished in deluxe padded case
170Z
170 Dial Sheet Gages, Inch Reading
Cat. No. EDP Range Graduation Dial Reading
170Z 50647 .150" .001" 0-100
