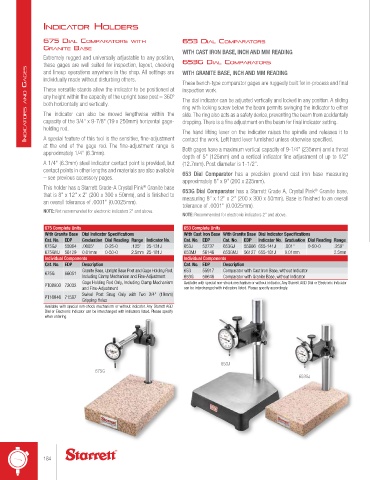

Page 184 - catalgo33

IndIcAtor Holders

675 dIAl coMpArAtors WItH 653 dIAl coMpArAtors
GrAnIte bAse
WITH CAST IRON BASE, INCH AND MM READING
Extremely rugged and universally adjustable to any position,
these gages are well suited for inspection, layout, checking 653G dIAl coMpArAtors
IndIca tors and GaGes These versatile stands allow the indicator to be positioned at inspection work.
and lineup operations anywhere in the shop. All settings are
WITH GRANITE BASE, INCH AND MM READING
individually made without disturbing others.
These bench-type comparator gages are ruggedly built for in-process and final
any height within the capacity of the upright base post – 360º
The dial indicator can be adjusted vertically and locked in any position. A sliding
both horizontally and vertically.
ring with locking screw below the beam permits swinging the indicator to either
The indicator can also be moved lengthwise within the
side. The ring also acts as a safety device, preventing the beam from accidentally
capacity of the 3/4" x 9-7/8" (19 x 250mm) horizontal gage-
dropping. There is a fine adjustment on the beam for final indicator setting.
holding rod.
A special feature of this tool is the sensitive, fine-adjustment
contact the work. Left hand lever furnished unless otherwise specified.
at the end of the gage rod. The fine-adjustment range is The hand lifting lever on the indicator raises the spindle and releases it to
Both gages have a maximum vertical capacity of 9-1/4" (235mm) and a throat
approximately 1/4" (6.3mm).
depth of 5" (125mm) and a vertical indicator fine adjustment of up to 1/2"
A 1/4" (6.3mm) steel indicator contact point is provided, but (12.7mm). Post diameter is 1-1/2".
contact points in other lengths and materials are also available 653 Dial Comparator has a precision ground cast iron base measuring
– see previous accessory pages.
approximately 8" x 9" (200 x 225mm).
®
This holder has a Starrett Grade-A Crystal Pink Granite base 653G Dial Comparator has a Starrett Grade A, Crystal Pink Granite base,
®
that is 8" x 12" x 2" (200 x 300 x 50mm), and is finished to measuring 8" x 12" x 2" (200 x 300 x 50mm). Base is finished to an overall
an overall tolerance of .0001" (0.0025mm).
tolerance of .0001" (0.0025mm).
NOTE: Not recommended for electronic indicators 2" and above.
NOTE: Recommended for electronic indicators 2" and above.
675 Complete Units 653 Complete Units
With Granite Base Dial Indicator Specifications With Cast Iron Base With Granite Base Dial Indicator Specifications
Cat. No. EDP Graduation Dial Reading Range Indicator No. Cat. No. EDP Cat. No. EDP Indicator No. Graduation Dial Reading Range
675GJ 55964 .0005" 0-25-0 .125" 25-131J 653J 52737 653GJ 55966 655-141J .001" 0-50-0 .250"
675GMJ 56129 0.01mm 0-50-0 2.5mm 25-181J 653MJ 56146 653GMJ 56127 655-181J 0.01mm 2.5mm
Individual Components Individual Components
Cat. No. EDP Description Cat. No. EDP Description
Granite Base, Upright Base Post and Gage Holding Rod, 653 55917 Comparator with Cast Iron Base, without Indicator
675G 66051
Including Clamp Mechanism and Fine-Adjustment 653G 56646 Comparator with Granite Base, without Indicator
Gage Holding Rod Only, Including Clamp Mechanism Available with special non-shock mechanism or without indicator. Any Starrett AGD Dial or Electronic Indicator
PT08903 72032
and Fine-Adjustment can be interchanged with indicators listed. Please specify accordingly.
Swivel Post Snug Only with Two 3/4" (19mm)
PT16846 71597
Gripping Holes
Available with special non-shock mechanism or without indicator. Any Starrett AGD
Dial or Electronic Indicator can be interchanged with indicators listed. Please specify
when ordering.

653J
675G
653GJ
