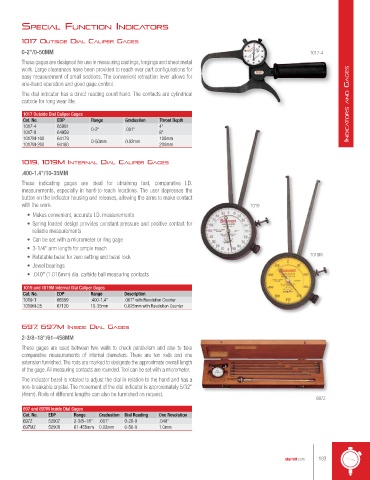

specIAl functIon IndIcAtors

1017 outsIde dIAl cAlIper GAGes
0-2"/0-50MM 1017-4
These gages are designed for use in measuring castings, forgings and sheet metal
work. Large clearances have been provided to reach over part configurations for
easy measurement of small sections. The convenient retraction lever allows for
one-hand operation and good gage control.
The dial indicator has a direct reading count hand. The contacts are cylindrical
carbide for long wear life. IndIca tors and GaGes

1017 Outside Dial Caliper Gages
Cat. No. EDP Range Graduation Throat Depth
1017-4 65091 0-2" .001" 4"
1017-8 64959 8"
1017M-100 64179 0-50mm 0.02mm 100mm
1017M-200 64180 200mm

1019, 1019M InternAl dIAl cAlIper GAGes
.400-1.4"/10-35MM
These indicating gages are ideal for obtaining fast, comparative I.D.
measurements, especially in hard-to-reach locations. The user depresses the
button on the indicator housing and releases, allowing the arms to make contact
with the work. 1019
• Makes convenient, accurate I.D. measurements
• Spring loaded design provides constant pressure and positive contact for
reliable measurements
• Can be set with a micrometer or ring gage
• 3-1/4" arm length for ample reach
• Rotatable bezel for zero setting and bezel lock 1019M
• Jewel bearings
• .040" (1.016mm) dia. carbide ball measuring contacts

1019 and 1019M Internal Dial Caliper Gages
Cat. No. EDP Range Description
1019-1 66559 .400-1.4" .001" with Revolution Counter
1019M-25 67120 10-35mm 0.025mm with Revolution Counter

697, 697M InsIde dIAl GAGes
2-3/8–18"/61–458MM
These gages are used between two walls to check parallelism and also to take
comparative measurements of internal diameters. There are ten rods and one
extension furnished. The rods are marked to designate the approximate overall length
of the gage. All measuring contacts are rounded. Tool can be set with a micrometer.
The indicator bezel is rotated to adjust the dial in relation to the hand and has a
non-breakable crystal. The movement of the dial indicator is approximately 5/32"
(4mm). Rods of different lengths can also be furnished on request.
697Z
697 and 697M Inside Dial Gages
Cat. No. EDP Range Graduation Dial Reading One Revolution
697Z 52907 2-3/8–18" .001" 0-20-0 .040"
697MZ 52908 61-458mm 0.02mm 0-50-0 1.0mm

starrett.com 193
