specIAl functIon IndIcAtors

IndIca tors and GaGes

1102

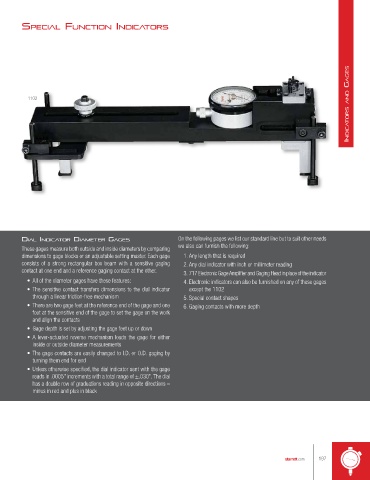

dIAl IndIcAtor dIAMeter GAGes On the following pages we list our standard line but to suit other needs
we also can furnish the following:
These gages measure both outside and inside diameters by comparing
dimensions to gage blocks or an adjustable setting master. Each gage 1. Any length that is required
consists of a strong rectangular box beam with a sensitive gaging 2. Any dial indicator with inch or millimeter reading
contact at one end and a reference gaging contact at the other. 3. 717 Electronic Gage Amplifier and Gaging Head in place of the indicator
• All of the diameter gages have these features: 4. Electronic indicators can also be furnished on any of these gages
• The sensitive contact transfers dimensions to the dial indicator except the 1102
through a linear friction-free mechanism 5. Special contact shapes
• There are two gage feet at the reference end of the gage and one 6. Gaging contacts with more depth
foot at the sensitive end of the gage to set the gage on the work
and align the contacts
• Gage depth is set by adjusting the gage feet up or down
• A lever-actuated reverse mechanism loads the gage for either
inside or outside diameter measurements
• The gage contacts are easily changed to I.D. or O.D. gaging by
turning them end for end
• Unless otherwise specified, the dial indicator sent with the gage
reads in .0005" increments with a total range of ±.030". The dial
has a double row of graduations reading in opposite directions –
minus in red and plus in black
