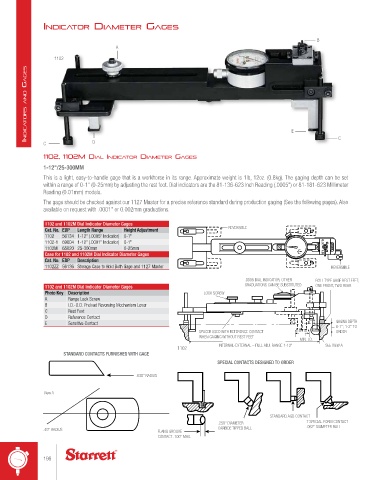

Page 198 - catalgo33

IndIcAtor dIAMeter GAGes

B
A

1102
IndIca tors and GaGes

C D E C

1102, 1102M dIAl IndIcAtor dIAMeter GAGes
1-12"/25-300MM
This is a light, easy-to-handle gage that is a workhorse in its range. Approximate weight is 1lb, 12oz. (0.8kg). The gaging depth can be set
within a range of 0-1" (0-25mm) by adjusting the rest foot. Dial indicators are the 81-136-623 Inch Reading (.0005") or 81-181-623 Millimeter
Reading (0.01mm) models.
The gage should be checked against our 1127 Master for a precise reference standard during production gaging (See the following pages). Also
available on request with .0001" or 0.002mm graduations.

1102 and 1102M Dial Indicator Diameter Gages
Cat. No. EDP Length Range Height Adjustment REVERSIBLE
1102 56134 1-12" (.0005" Indicator) 0-1"
1102-1 69004 1-12" (.0001" Indicator) 0-1" O.D.
1102M 65020 25-300mm 0-25mm
Case for 1102 and 1102M Dial Indicator Diameter Gages I.D.
Cat. No. EDP Description
1102ZZ 56136 Storage Case to Hold Both Gage and 1127 Master REVERSIBLE

.0005 DIAL INDICATOR; OTHER ROLL TYPE GAGE REST FEET;
1102 and 1102M Dial Indicator Diameter Gages GRADUATIONS CAN BE SUBSTITUTED ONE FRONT, TWO REAR
Photo Key Description LOCK SCREW
A Range Lock Screw
B I.D.-O.D. Preload Reversing Mechanism Lever
C Rest Foot
D Reference Contact
E Sensitive Contact GAGING DEPTH
0-1"; 1-2" TO
SPACER USED WITH REFERENCE CONTACT 1" ORDER
WHEN GAGING WITHOUT REST FEET
MIN. I.D.
INTERNAL-EXTERNAL – FULL ADJ. RANGE 1-12" SEE VIEW A
1102
STANDARD CONTACTS FURNISHED WITH GAGE
SPECIAL CONTACTS DESIGNED TO ORDER

.030" RADIUS

View A

STANDARD AGD CONTACT
.250" DIAMETER 7 SPECIAL FORM CONTACT
.49" RADIUS FLANG GROOVE CARBIDE TIPPED BALL .062" DIAMETER BALL
CONTACT .100" MAX.

198
