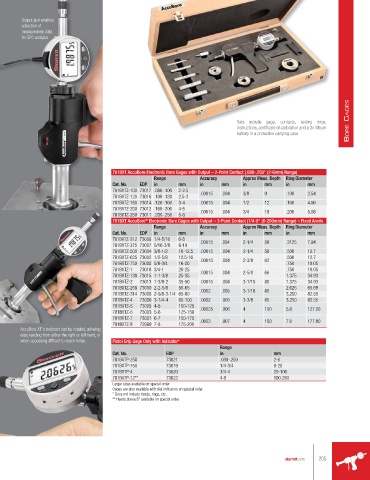

Output jack enables
collection of
measurement data
for SPC analysis

Bore GaGes

Sets include gage, contacts, setting rings,
instructions, certificate of calibration and a 3v lithium
battery in a protective carrying case

781BXT AccuBore Electronic Bore Gages with Output – 2-Point Contact (.080-.250" (2-6mm) Range)
Range Accuracy Approx Meas. Depth Ring Diameter
Cat. No. EDP in mm in mm in mm in mm
781BXTZ-100 73017 .080-.100 2-2.5 .00015 .004 3/8 9 .100 2.54
781BXTZ-120 73016 .100-.120 2.5-3
781BXTZ-160 73014 .120-.160 3-4 .00015 .004 1/2 12 .160 4.06
781BXTZ-200 73012 .160-.200 4-5 .00015 .004 3/4 18 .200 5.08
781BXTZ-250 73011 .200-.250 5-6
781BXT AccuBore Electronic Bore Gages with Output – 3-Point Contact (1/4-8" (6-200mm) Range) – Fixed Anvils
®
Range Accuracy Approx Meas. Depth Ring Diameter
Cat. No. EDP in mm in mm in mm in mm
781BXTZ-312 73009 1/4-5/16 6-8 .00015 .004 2-1/4 58 .3125 7.94
781BXTZ-375 73007 5/16-3/8 8-10
781BXTZ-500 73004 3/8-1/2 10-12.5 .00015 .004 2-1/4 58 .500 12.7
781BXTZ-625 73002 1/2-5/8 12.5-16 .00015 .004 2-3/8 62 .500 12.7
781BXTZ-750 73000 5/8-3/4 16-20 .750 19.05
781BXTZ-1 73018 3/4-1 20-25 .00015 .004 2-5/8 66 .750 19.05
781BXTZ-138 73015 1-1-3/8 25-35 1.375 34.93
781BXTZ-2 73013 1-3/8-2 35-50 .00015 .004 3-1/16 80 1.375 34.93
781BXTZ-258 73010 2-2-5/8 50-65 .0002 .005 3-1/16 80 2.625 65.68
781BXTZ-314 73008 2-5/8-3-1/4 65-80 3.250 82.55
781BXTZ-4 73006 3-1/4-4 80-100 .0002 .005 3-3/8 85 3.250 82.55
781BXTZ-5 73005 4-5 100-125 .00025 .006 4 100 5.0 127.00
781BXTZ-6 73003 5-6 125-150
781BXTZ-7 73001 6-7 150-175 .0003 .007 4 100 7.0 177.80
781BXTZ-8 72999 7-8 175-200
AccuBore XT's indicator can be rotated, allowing
easy reading from either the right or left hand, or
when accessing difficult to reach holes Pistol Grip Gage Only with Indicator*
Range
Cat. No. EDP in mm
781BXTP-250 73021 .080-.250 2-6
781BXTP-750 73019 1/4-3/4 6-20
781BXTP-4 73020 3/4-4 20-100
781BXTP-12** 73022 4-8 100-200
Larger sizes available on special order.
Gages are also available with dial indicators on special order.
* Does not include heads, rings, etc.
** Heads above 8" available on special order.
