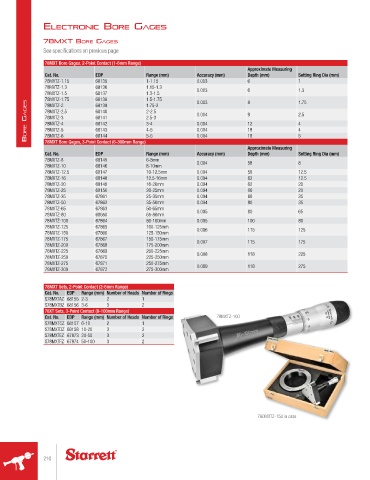

Page 210 - catalgo33

electronIc bore GAGes

78Mxt bore GAGes
See specifications on previous page
78MXT Bore Gages, 2-Point Contact (1-6mm Range)
Approximate Measuring
Cat. No. EDP Range (mm) Accuracy (mm) Depth (mm) Setting Ring Dia (mm)
78MXTZ-1.15 68135 1-1.15 0.003 6 1
78MXTZ-1.3 68136 1.15-1.3 0.003 6 1.3
78MXTZ-1.5 68137 1.3-1.5
78MXTZ-1.75 68138 1.5-1.75 0.003 8 1.75
Bore GaGes 78MXTZ-2.5 68140 2-2.5 0.004 9 12 2.5
1.75-2
68139
78MXTZ-2
78MXTZ-3
2.5-3
68141
0.004
4
78MXTZ-4
68142
3-4
4
4-5
0.004
18
78MXTZ-5
68143
5-6
68144
18
0.004
78MXTZ-6
78MXT Bore Gages, 3-Point Contact (6-300mm Range)
Approximate Measuring 5
Cat. No. EDP Range (mm) Accuracy (mm) Depth (mm) Setting Ring Dia (mm)
78MXTZ-8 68145 6-8mm 0.004 58 8
78MXTZ-10 68146 8-10mm
78MXTZ-12.5 68147 10-12.5mm 0.004 58 12.5
78MXTZ-16 68148 12.5-16mm 0.004 62 12.5
78MXTZ-20 68149 16-20mm 0.004 62 20
78MXTZ-25 68150 20-25mm 0.004 66 20
78MXTZ-35 67861 25-35mm 0.004 66 35
78MXTZ-50 67862 35-50mm 0.004 80 35
78MXTZ-65 67863 50-65mm 0.005 80 65
78MXTZ-80 68650 65-80mm
78MXTZ-100 67864 80-100mm 0.005 100 80
78MXTZ-125 67865 100-125mm 0.006 115 125
78MXTZ-150 67866 125-150mm
78MXTZ-175 67867 150-175mm 0.007 115 175
78MXTZ-200 67868 175-200mm
78MXTZ-225 67869 200-225mm 0.008 118 225
78MXTZ-250 67870 225-250mm
78MXTZ-275 67871 250-275mm 0.009 118 275
78MXTZ-300 67872 275-300mm
78MXT Sets, 2-Point Contact (2-6mm Range)
Cat. No. EDP Range (mm) Number of Heads Number of Rings
S78MXTAZ 68155 2-3 2 1
S78MXTBZ 68156 3-6 3 2
78XT Sets, 3-Point Contact (6-100mm Range)
Cat. No. EDP Range (mm) Number of Heads Number of Rings 78MXTZ-100
S78MXTCZ 68157 6-10 2 1
S78MXTDZ 68158 10-20 3 2
S78MXTEZ 67873 20-50 3 2
S78MXTFZ 67874 50-100 3 2

780MXTZ-150 in case
