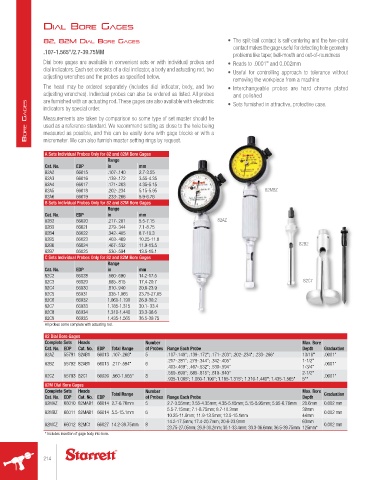

dIAl bore GAGes

82, 82M dIAl bore GAGes • The split-ball contact is self-centering and the two-point
contact makes the gage useful for detecting hole geometry
.107-1.565"/2.7-39.75MM
problems like taper, bell-mouth and out-of-roundness
Dial bore gages are available in convenient sets or with individual probes and • Reads to .0001" and 0.002mm
dial indicators. Each set consists of a dial indicator, a body and actuating rod, two • Useful for controlling approach to tolerance without
adjusting wrenches and the probes as specified below. removing the workpiece from a machine
The head may be ordered separately (includes dial indicator, body, and two • Interchangeable probes are hard chrome plated
adjusting wrenches). Individual probes can also be ordered as listed. All probes • Sets furnished in attractive, protective case.
and polished
are furnished with an actuating rod. These gages are also available with electronic
Bore GaGes indicators by special order.
Measurements are taken by comparison so some type of set master should be
used as a reference standard. We recommend setting as close to the hole being
measured as possible, and this can be easily done with gage blocks or with a
micrometer. We can also furnish master setting rings by request.

A Sets Individual Probes Only for 82 and 82M Bore Gages
Range
Cat. No. EDP in mm
82A2 66015 .107-.140 2.7-3.55
82A3 66016 .139-.172 3.55-4.35
82A4 66017 .171-.203 4.35-5.15
82A5 66018 .202-.234 5.15-5.95 82MBZ
82A6 66019 .233-.266 5.9-6.76
B Sets Individual Probes Only for 82 and 82M Bore Gages
Range
Cat. No. EDP in mm
82B2 66020 .217-.281 5.5-7.15 82AZ
82B3 66021 .279-.344 7.1-8.75
82B4 66022 .342-.405 8.7-10.3
82B5 66023 .403-.469 10.25-11.9
82B6 66024 .467-.532 11.9-13.5 82B2
82B7 66025 .530-.594 13.5-15.1
C Sets Individual Probes Only for 82 and 82M Bore Gages
Range
Cat. No. EDP in mm
82C2 66028 .560-.690 14.2-17.5
82C3 66029 .685-.815 17.4-20.7 82C7
82C4 66030 .810-.940 20.6-23.9
82C5 66031 .935-1.065 23.75-27.05
82C6 66032 1.060-1.190 26.9-30.2
82C7 66033 1.185-1.315 30.1- 33.4
82C8 66034 1.310-1.440 33.3-36.6
82C9 66035 1.435-1.565 36.5-39.75
All probes come complete with actuating rod.

82 Dial Bore Gages
Complete Sets Heads Number Max. Bore
Cat. No. EDP Cat. No. EDP Total Range of Probes Range Each Probe Depth Graduation
82AZ 55791 82AB1 66013 .107-.266" 5 .107-.140"; .139-.172"; .171-.203"; .202-.234"; .233-.266" 13/16" .0001"
.217-.281"; .279-.344"; .342-.405" 1-1/2"
82BZ 55792 82AB1 66013 .217-.594" 6 .0001"
.403-.469"; .467-.532"; .530-.594" 1-3/4"
.560-.690"; .685-.815"; .810-.940" 2-1/2"
82CZ 55793 82C1 66026 .560-1.565" 8 .0001"
.935-1.065"; 1.060-1.190"; 1.185-1.315"; 1.310-1.440"; 1.435-1.565" 5"*
82M Dial Bore Gages
Complete Sets Heads Total Range Number Max. Bore Graduation
Cat. No. EDP Cat. No. EDP of Probes Range Each Probe Depth
82MAZ 66010 82MAB1 66014 2.7-6.76mm 5 2.7-3.55mm; 3.55-4.35mm; 4.35-5.15mm; 5.15-5.95mm; 5.95-6.76mm 20.6mm 0.002 mm
5.5-7.15mm; 7.1-8.75mm; 8.7-10.3mm 38mm
82MBZ 66011 82MAB1 66014 5.5-15.1mm 6 0.002 mm
10.25-11.9mm; 11.9-13.5mm; 13.5-15.1mm 44mm
14.2-17.5mm; 17.4-20.7mm; 20.6-23.9mm 63mm
82MCZ 66012 82MC1 66027 14.2-39.75mm 8 0.002 mm
23.75-27.05mm; 26.9-30.2mm; 30.1-33.4mm; 33.3-36.6mm; 36.5-39.75mm 125mm*
* Includes insertion of gage body into bore.
