bore GAGe systeMs

™

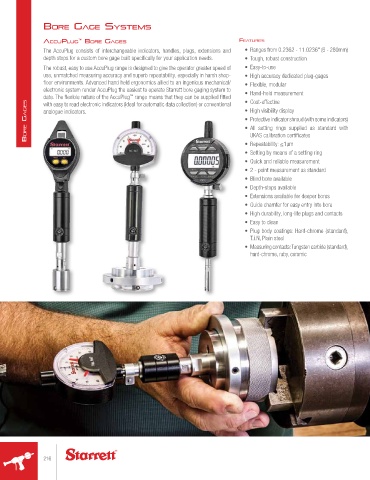

AccupluG bore GAGes feAtures
The AccuPlug consists of interchangeable indicators, handles, plugs, extensions and • Ranges from 0.2362 - 11.0236" (6 - 280mm)
depth stops for a custom bore gage built specifically for your application needs. • Tough, robust construction
The robust, easy to use AccuPlug range is designed to give the operator greater speed of • Easy-to-use
use, unmatched measuring accuracy and superb repeatability, especially in harsh shop- • High accuracy dedicated plug-gages
floor environments. Advanced hand held ergonomics allied to an ingenious mechanical/ • Flexible, modular
electronic system render AccuPlug the easiest to operate Starrett bore gaging system to • Hand-held measurement
date. The flexible nature of the AccuPlug range means that they can be supplied fitted • Cost-effective
™
Bore GaGes analogue indicators. • High visibility display
with easy to read electronic indicators (ideal for automatic data collection) or conventional
• Protective indicator shroud (with some indicators)
• All setting rings supplied as standard with
UKAS calibration certificates
• Repeatability: ≤1μm
• Setting by means of a setting ring
• Quick and reliable measurement
• 2 - point measurement as standard
• Blind bore available
• Depth-stops available
• Extensions available for deeper bores
• Guide chamfer for easy entry into bore
• High durability, long-life plugs and contacts
• Easy to clean
• Plug body coatings: Hard-chrome (standard),
T.i.N, Plain steel
• Measuring contacts: Tungsten carbide (standard),
hard-chrome, ruby, ceramic
