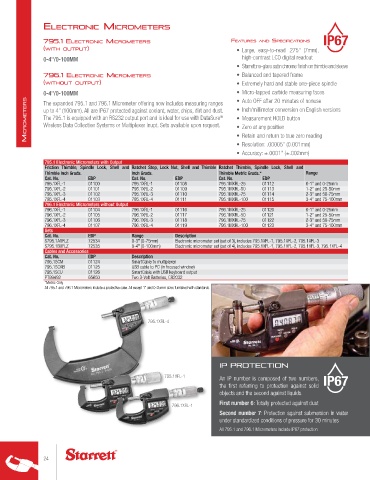

electronIc MIcroMeters

795.1 electronIc MIcroMeters feAtures And specIfIcAtIons
(WItH output) • Large, easy-to-read .275" (7mm),

0-4"/0-100MM high-contrast LCD digital readout
• Starrett no-glare satin chrome finish on thimble and sleeve
796.1 electronIc MIcroMeters • Balanced and tapered frame
(WItHout output) • Extremely hard and stable one-piece spindle
0-4"/0-100MM • Micro-lapped carbide measuring faces
MicroMeters up to 4" (100mm). All are IP67 protected against coolant, water, chips, dirt and dust. • Inch/millimeter conversion on English versions
• Auto OFF after 20 minutes of nonuse
The expanded 795.1 and 796.1 Micrometer offering now includes measuring ranges
The 795.1 is equipped with an RS232 output port and is ideal for use with DataSure
• Measurement HOLD button
®
Wireless Data Collection Systems or Multiplexer Inupt. Sets available upon request.
• Zero at any position
• Retain and return to true zero reading
• Resolution: .00005" (0.001mm)
• Accuracy: ±.0001" (±.002mm)
795.1 Electronic Micrometers with Output
Friction Thimble, Spindle Lock, Shell and Ratchet Stop, Lock Nut, Shell and Thimble Ratchet Thimble, Spindle Lock, Shell and
Thimble Inch Grads. Inch Grads. Thimble Metric Grads.* Range
Cat. No. EDP Cat. No. EDP Cat. No. EDP
795.1XFL-1 01100 795.1XRL-1 01108 795.1MXRL-25 01112 0-1" and 0-25mm
795.1XFL-2 01101 795.1XRL-2 01109 795.1MXRL-50 01113 1-2" and 25-50mm
795.1XFL-3 01102 795.1XRL-3 01110 795.1MXRL-75 01114 2-3" and 50-75mm
795.1XFL-4 01103 795.1XRL-4 01111 795.1MXRL-100 01115 3-4" and 75-100mm
796.1 Electronic Micrometers without Output
796.1XFL-1 01104 796.1XRL-1 01116 796.1MXRL-25 01120 0-1" and 0-25mm
796.1XFL-2 01105 796.1XRL-2 01117 796.1MXRL-50 01121 1-2" and 25-50mm
796.1XFL-3 01106 796.1XRL-3 01118 796.1MXRL-75 01122 2-3" and 50-75mm
796.1XFL-4 01107 796.1XRL-4 01119 796.1MXRL-100 01123 3-4" and 75-100mm
Sets
Cat. No. EDP Range Description
S795.1AXFLZ 72534 0-3" (0-75mm) Electronic micrometer set (set of 3), includes 795.1XFL-1, 795.1XFL-2, 795.1XFL-3
S795.1BXFLZ 72535 0-4" (0-100mm) Electronic micrometer set (set of 4), includes 795.1XFL-1, 795.1XFL-2, 795.1XFL-3, 795.1XFL-4
Cables and Accessories
Cat. No. EDP Description
795.1SCM 01124 SmartCable to multiplexer
795.1SCKB 01125 USB cable to PC (In focused window)
795.1SCU 01126 SmartCable with USB keyboard output
PT99492 65650 Two 3-Volt Batteries, CR2032
*Metric Only
All 795.1 and 796.1 Micrometers include a protective case. All except 1" and 0-25mm sizes furnished with standards.

795.1XRL-4

IP Protection

795.1XFL-1
An IP number is composed of two numbers,
the first referring to protection against solid
objects and the second against liquids.
First number 6: Totally protected against dust
796.1XRL-1
Second number 7: Protection against submersion in water
under standardized conditions of pressure for 30 minutes
All 795.1 and 796.1 Micrometers include IP67 protection

24
