Page 28 - catalgo33

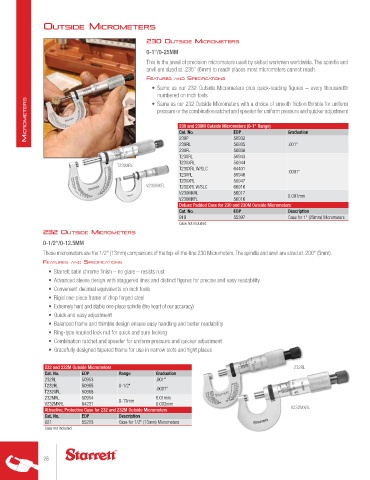

outsIde MIcroMeters

230 outsIde MIcroMeters
0-1"/0-25MM
This is the jewel of precision micrometers used by skilled workmen worldwide. The spindle and
anvil are sized at .235" (6mm) to reach places most micrometers cannot reach.
feAtures And specIfIcAtIons
• Same as our 232 Outside Micrometers plus quick-reading figures – every thousandth
numbered on inch tools
MicroMeters pressure or the combination ratchet and speeder for uniform pressure and quicker adjustment
• Same as our 232 Outside Micrometers with a choice of smooth friction thimble for uniform

230 and 230M Outside Micrometers (0-1" Range)
Graduation
EDP
Cat. No.
230P
50935
230RL 50932 .001"
230FL 50938
T230RL 50943
T230XRL 50944
T230XRL
T230XRL W/SLC 64401 .0001"
T230FL 50946
T230XFL 50947
V230MXFL T230XFL W/SLC 66916
V230MXRL 56017 0.001mm
V230MXFL 56016
Deluxe Padded Case for 230 and 230M Outside Micrometers
Cat. No. EDP Description
910 55397 Case for 1" (25mm) Micrometers
Case not included.
232 outsIde MIcroMeters
0-1/2"/0-12.5MM

These micrometers are the 1/2" (13mm) companions of the top-of-the-line 230 Micrometers. The spindle and anvil are sized at .200" (5mm).
feAtures And specIfIcAtIons
• Starrett satin chrome finish – no glare – resists rust
• Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
• Convenient decimal equivalents on inch tools
• Rigid one-piece frame of drop forged steel
• Extremely hard and stable one-piece spindle (the heart of our accuracy)
• Quick and easy adjustment
• Balanced frame and thimble design ensure easy handling and better readability
• Ring-type knurled lock nut for quick and sure locking
• Combination ratchet and speeder for uniform pressure and quicker adjustment
• Gracefully designed tapered frame for use in narrow slots and tight places

232 and 232M Outside Micrometers 232RL
Cat. No. EDP Range Graduation
232RL 50953 .001"
T232RL 50955 0-1/2" .0001"
T232XRL 50968
232MRL 50954 0-13mm 0.01mm
V232MXRL 64231 0.002mm
Attractive, Protective Case for 232 and 232M Outside Micrometers V232MXRL
Cat. No. EDP Description
921 55213 Case for 1/2" (13mm) Micrometers
Case not included.

28
