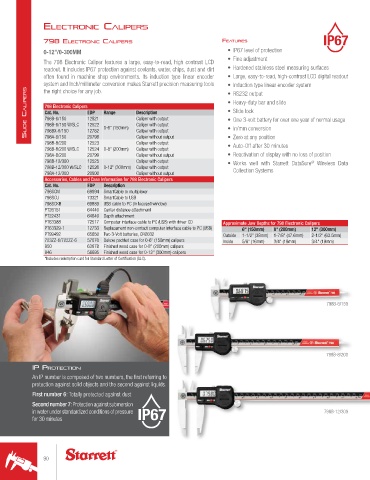

Page 90 - catalgo33

electronIc cAlIpers

798 electronIc cAlIpers feAtures
0-12"/0-300MM • IP67 level of protection
• Fine adjustment
The 798 Electronic Caliper features a large, easy-to-read, high contrast LCD
readout. It includes IP67 protection against coolants, water, chips, dust and dirt • Hardened stainless steel measuring surfaces
often found in machine shop environments. Its induction type linear encoder • Large, easy-to-read, high-contrast LCD digital readout
system and Inch/millimeter conversion makes Starrett precision measuring tools • Induction type linear encoder system
Slide CaliperS 798 Electronic Calipers EDP Range Description • Heavy-duty bar and slide
the right choice for any job.
• RS232 output
• Slide lock
Cat. No.
798B-6/150
Caliper with output
12521
• One 3-volt battery for over one year of normal usage
798B-6/150 W/SLC
12522
Caliper with output
0-6" (150mm)
• In/mm conversion
798BX-6/150
Caliper without output
20798
798A-6/150
798B-8/200 12782 Caliper with output • Zero at any position
Caliper with output
12523
• Auto-Off after 30 minutes
798B-8/200 W/SLC 12524 0-8" (200mm) Caliper with output
798A-8/200 20799 Caliper without output • Reactivation of display with no loss of position
798B-12/300 12525 Caliper with output • Works well with Starrett DataSure Wireless Data
®
798B-12/300 W/SLC 12526 0-12" (300mm) Caliper with output Collection Systems
798A-12/300 20800 Caliper without output
Accessories, Cables and Case Information for 798 Electronic Calipers
Cat. No. EDP Description
798SCM 69894 SmartCable to multiplexer
798SCU 73321 SmartCable to USB
798SCKB 69889 USB cable to PC (In focused window)
PT26151 64440 Center distance attachment
PT22431 64640 Depth attachment
PT63388 72517 Computer interface cable to PC (USB) with driver CD Approximate Jaw Depths for 798 Electronic Calipers
PT63329-1 12733 Replacement non-contact computer interface cable to PC (USB) 6" (150mm) 8" (200mm) 12" (300mm)
PT99492 65650 Two 3-Volt batteries, CR2032 Outside 1-1/2" (38mm) 1-7/8" (47.6mm) 2-1/2" (63.5mm)
723ZZ-6/722ZZ-6 57070 Deluxe padded case for 0-6" (150mm) calipers Inside 5/8" (16mm) 3/4" (19mm) 3/4" (19mm)
950 63878 Finished wood case for 0-8" (200mm) calipers
946 56695 Finished wood case for 0-12" (300mm) calipers
*Includes redemption card for Standard Letter of Certification (SLC).
798B-6/150

798B-8/200

Ip protectIon
An IP number is composed of two numbers, the first referring to
protection against solid objects and the second against liquids.

First number 6: Totally protected against dust
Second number 7: Protection against submersion
in water under standardized conditions of pressure 798B-12/300
for 30 minutes
