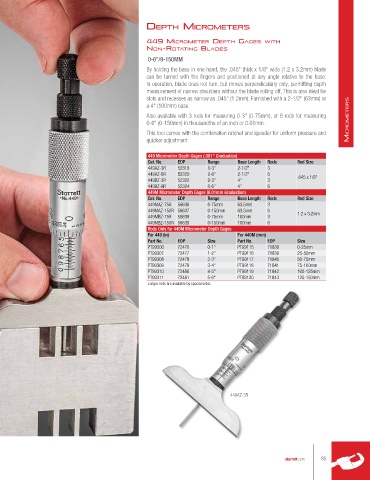

deptH MIcroMeters

449 MIcroMeter deptH GAGes WItH
non-rotAtInG blAdes
0-6"/0-150MM
By holding the base in one hand, the .045" thick x 1/8" wide (1.2 x 3.2mm) blade
can be turned with the fingers and positioned at any angle relative to the base.
In operation, blade does not turn, but moves perpendicularly only, permitting depth
measurement of narrow shoulders without the blade rolling off. This is also ideal for
slots and recesses as narrow as .045" (1.2mm). Furnished with a 2-1/2" (63mm) or
a 4" (100mm) base.
Also available with 3 rods for measuring 0-3" (0-75mm), or 6 rods for measuring
0-6" (0-150mm) in thousandths of an inch or 0.01mm. MicroMeters
This tool comes with the combination ratchet and speeder for uniform pressure and
quicker adjustment.

449 Micrometer Depth Gages (.001" Graduation)
Cat. No. EDP Range Base Length Rods Rod Size
449AZ-3R 52318 0-3" 2-1/2" 3
449AZ-6R 52320 0-6" 2-1/2" 6 .045 x 1/8"
449BZ-3R 52322 0-3" 4" 3
449BZ-6R 52324 0-6" 4" 6
449M Micrometer Depth Gages (0.01mm Graduation)
Cat. No. EDP Range Base Length Rods Rod Size
449MAZ-75R 56636 0-75mm 63.5mm 3
449MAZ-150R 56637 0-150mm 63.5mm 6 1.2 x 3.2mm
449MBZ-75R 56638 0-75mm 100mm 3
449MBZ-150R 56639 0-150mm 100mm 6
Rods Only for 449M Micrometer Depth Gages
For 449 (in) For 449M (mm)
Part No. EDP Size Part No. EDP Size
PT99306 72476 0-1" PT99115 71838 0-25mm
PT99307 72477 1-2" PT99116 71839 25-50mm
PT99308 72478 2-3" PT99117 71840 50-75mm
PT99309 72479 3-4" PT99118 71841 75-100mm
PT99310 72480 4-5" PT99119 71842 100-125mm
PT99311 72481 5-6" PT99120 71843 125-150mm
Longer rods are available by special order.

449AZ-3R
