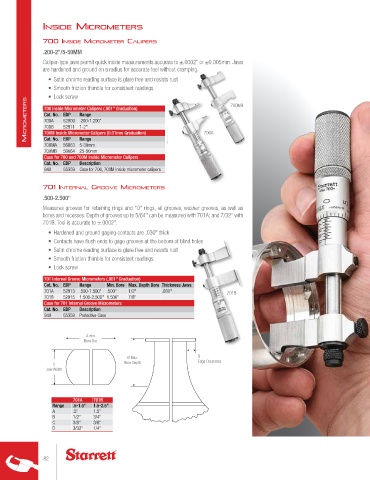

InsIde MIcroMeters

700 InsIde MIcroMeter cAlIpers
.200-2"/5-50MM
Caliper-type jaws permit quick inside measurements accurate to ±.0002" or ±0.005mm. Jaws
are hardened and ground on a radius for accurate feel without cramping.
• Satin chrome reading surface is glare free and resists rust
• Smooth friction thimble for consistent readings
• Lock screw 700MB
MicroMeters 700 Inside Micrometer Calipers (.001" Graduation) 700A

Range
Cat. No. EDP
700A
52909 .200-1.200"
700B
52911 1-2"
700M Inside Micrometer Calipers (0.01mm Graduation)
Cat. No. EDP
Range
700MA 56063 5-30mm
700MB 56064 25-50mm
Case for 700 and 700M Inside Micrometer Calipers
Cat. No. EDP Description
940 55359 Case for 700, 700M inside micrometer calipers
701 InternAl Groove MIcroMeters
.500-2.500"
Measures grooves for retaining rings and "O" rings, oil grooves, washer grooves, as well as
bores and recesses. Depth of grooves up to 5/64" can be measured with 701A; and 7/32" with
701B. Tool is accurate to ±.0002".
• Hardened and ground gaging contacts are .030" thick
• Contacts have flush ends to gage grooves at the bottom of blind holes
• Satin chrome reading surface is glare free and resists rust
• Smooth friction thimble for consistent readings
• Lock screw

701 Internal Groove Micrometers (.001" Graduation)
Cat. No. EDP Range Min. Bore Max. Depth Bore Thickness Jaws
701A 52913 .500-1.500" .500" 1/2" .030" 701B
701B 52915 1.500-2.500" 1.500" 7/8"
Case for 701 Internal Groove Micrometers
Cat. No. EDP Description
940 55359 Protective Case

A min.
Bore Dia.

B Max. D
C Bore Depth Edge Clearance
Jaw Width

701A 701B
Range .5-1.5" 1.5-2.5"
A .5" 1.5"
B 1/2" 3/4"
C 3/8" 3/8"
D 3/32" 1/4"
