MIcroMeter sets

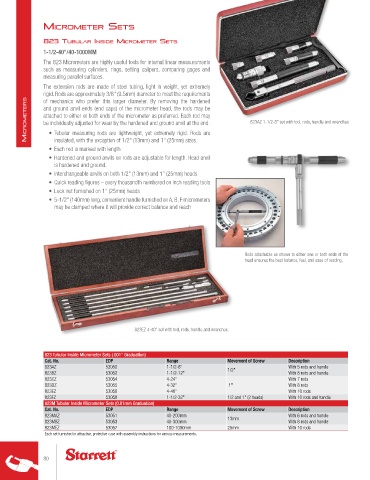

823 tubulAr InsIde MIcroMeter sets
1-1/2-40"/40-1000MM
The 823 Micrometers are highly useful tools for internal linear measurements
such as measuring cylinders, rings, setting calipers, comparing gages and
measuring parallel surfaces.
The extension rods are made of steel tubing, light in weight, yet extremely
rigid. Rods are approximately 3/8" (9.5mm) diameter to meet the requirements
MicroMeters and ground anvil ends (end caps) of the micrometer head, the rods may be 823AZ 1-1/2-8" set with tool, rods, handle and wrenches
of mechanics who prefer this larger diameter. By removing the hardened
attached to either or both ends of the micrometer as preferred. Each rod may
be individually adjusted for wear by the hardened and ground anvil at the end.
• Tubular measuring rods are lightweight, yet extremely rigid. Rods are
insulated, with the exception of 1/2" (13mm) and 1" (25mm) sizes.
• Each rod is marked with length
• Hardened and ground anvils on rods are adjustable for length. Head anvil
is hardened and ground.
• Interchangeable anvils on both 1/2" (13mm) and 1" (25mm) heads
• Quick reading figures – every thousandth numbered on inch reading tools
• Lock nut furnished on 1" (25mm) heads
• 5-1/2" (140mm) long, convenient handle furnished on A, B, F micrometers
may be clamped where it will provide correct balance and reach

Rods attachable as shown to either one or both ends of the
head ensures the best balance, feel, and ease of reading.

823EZ 4-40" set with tool, rods, handle and wrenches.

823 Tubular Inside Micrometer Sets (.001" Graduation)
Cat. No. EDP Range Movement of Screw Description
823AZ 53050 1-1/2-8" 1/2" With 5 rods and handle
823BZ 53052 1-1/2-12" With 8 rods and handle
823CZ 53054 4-24" With 7 rods
823DZ 53055 4-32" 1" With 8 rods
823EZ 53056 4-40" With 10 rods
823FZ 53058 1-1/2-32" 1/2 and 1" (2 heads) With 10 rods and handle
823M Tubular Inside Micrometer Sets (0.01mm Graduation)
Cat. No. EDP Range Movement of Screw Description
823MAZ 53051 40 -200mm 13mm With 6 rods and handle
823MBZ 53053 40-300mm With 8 rods and handle
823MEZ 53057 100-1000mm 25mm With 10 rods
Each set furnished in attractive, protective case with assembly instructions for various measurements.
