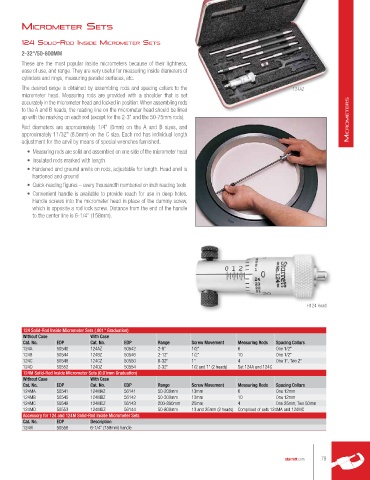

MIcroMeter sets

124 solId -rod InsIde MIcroMeter sets
2-32"/50-800MM
These are the most popular inside micrometers because of their lightness,
ease of use, and range. They are very useful for measuring inside diameters of
cylinders and rings, measuring parallel surfaces, etc.
The desired range is obtained by assembling rods and spacing collars to the 124AZ
micrometer head. Measuring rods are provided with a shoulder that is set
accurately in the micrometer head and locked in position. When assembling rods
to the A and B heads, the reading line on the micrometer head should be lined
up with the marking on each rod (except for the 2-3" and the 50-75mm rods). MicroMeters

Rod diameters are approximately 1/4" (6mm) on the A and B sizes, and
approximately 11/32" (8.5mm) on the C size. Each rod has individual length
adjustment for the anvil by means of special wrenches furnished.
• Measuring rods are solid and assembled on one side of the micrometer head
• Insulated rods marked with length
• Hardened and ground anvils on rods, adjustable for length. Head anvil is
hardened and ground
• Quick-reading figures – every thousandth numbered on inch reading tools
• Convenient handle is available to provide reach for use in deep holes.
Handle screws into the micrometer head in place of the dummy screw,
which is opposite a rod lock screw. Distance from the end of the handle
to the center line is 6-1/4" (158mm).

H124 Head

124 Solid -Rod Inside Micrometer Sets (.001" Graduation)
Without Case With Case
Cat. No. EDP Cat. No. EDP Range Screw Movement Measuring Rods Spacing Collars
124A 50540 124AZ 50542 2-8" 1/2" 6 One 1/2"
124B 50544 124BZ 50546 2-12" 1/2" 10 One 1/2"
124C 50548 124CZ 50550 8-32" 1" 4 One 1", Two 2"
124D 50552 124DZ 50554 2-32" 1/2 and 1" (2 heads) Set 124A and 124C
124M Solid -Rod Inside Micrometer Sets (0.01mm Graduation)
Without Case With Case
Cat. No. EDP Cat. No. EDP Range Screw Movement Measuring Rods Spacing Collars
124MA 50541 124MAZ 56141 50-200mm 13mm 6 One 12mm
124MB 50545 124MBZ 56142 50-300mm 13mm 10 One 12mm
124MC 50549 124MCZ 56143 200-800mm 25mm 4 One 25mm, Two 50mm
124MD 50553 124MDZ 56144 50-800mm 13 and 25mm (2 heads) Comprised of sets 124MA and 124MC
Accessory for 124 and 124M Solid -Rod Inside Micrometer Sets
Cat. No. EDP Description
124H 50556 6-1/4" (158mm) handle

starrett.com 79
