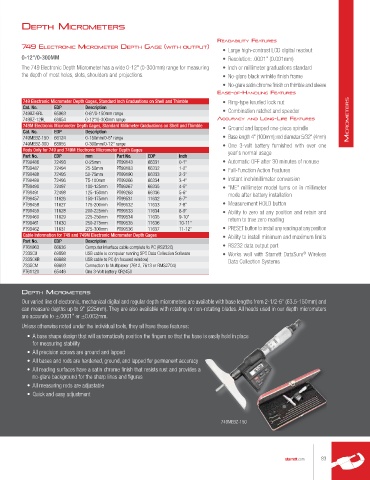

Page 83 - catalgo33

deptH MIcroMeters

reAdAbIlIty feAtures
749 electronIc MIcroMeter deptH GAGe (WItH output)
• Large high-contrast LCD digital readout
0-12"/0-300MM • Resolution: .0001" (0.001mm)
The 749 Electronic Depth Micrometer has a wide 0-12" (0-300mm) range for measuring • Inch or millimeter graduations standard
the depth of most holes, slots, shoulders and projections. • No-glare black wrinkle finish frame
• No-glare satin chrome finish on thimble and sleeve
eAse-of-HAndlInG feAtures
749 Electronic Micrometer Depth Gages, Standard Inch Graduations on Shell and Thimble • Ring-type knurled lock nut
Cat. No. EDP Description • Combination ratchet and speeder
749BZ-6RL 65063 0-6"/0-150mm range
749BZ-12RL 68854 0-12"/0-300mm range AccurAcy And lonG-lIfe feAtures MicroMeters
749M Electronic Micrometer Depth Gages, Standard Millimeter Graduations on Shell and Thimble • Ground and lapped one-piece spindle
Cat. No. EDP Description
749MEBZ-150 66124 0-150mm/0-6" range • Base length 4" (100mm); rod diameter 5/32" (4mm)
749MEBZ-300 68855 0-300mm/0-12" range • One 3-volt battery furnished with over one
Rods Only for 749 and 749M Electronic Micrometer Depth Gages year's normal usage
Part No. EDP mm Part No. EDP Inch
PT99486 72493 0-25mm PT99143 66331 0-1" • Automatic OFF after 30 minutes of nonuse
PT99487 72494 25-50mm PT99183 66332 1-2" • Full-Function Action Features
PT99488 72495 50-75mm PT99190 66333 2-3"
PT99489 72496 75-100mm PT99266 66334 3-4" • Instant inch/millimeter conversion
PT99490 72497 100-125mm PT99267 66335 4-5" • "ME" millimeter model turns on in millimeter
PT99491 72498 125-150mm PT99268 66336 5-6" mode after battery installation
PT99457 11626 150-175mm PT99531 11632 6-7"
PT99458 11627 175-200mm PT99532 11633 7-8" • Measurement HOLD button
PT99459 11628 200-225mm PT99533 11634 8-9" • Ability to zero at any position and retain and
PT99460 11629 225-250mm PT99534 11635 9-10" return to true zero reading
PT99461 11630 250-275mm PT99535 11636 10-11"
PT99462 11631 275-300mm PT99536 11637 11-12" • PRESET button to install any reading at any position
Cable Information for 749 and 749M Electronic Micrometer Depth Gages • Ability to install minimum and maximum limits
Part No. EDP Description
PT61963 66636 Computer interface cable complete to PC (RS232C) • RS232 data output port
733SCU 69898 USB cable to computer running SPC Data Collection Software • Works well with Starrett DataSure Wireless
®
733SCKB 69888 USB cable to PC (In focused window) Data Collection Systems
733SCM 69893 Connection to Multiplexer (7612, 7613 or RMS2704)
PT61120 65446 One 3-Volt battery CR2450

deptH MIcroMeters
Our varied line of electronic, mechanical digital and regular depth micrometers are available with base lengths from 2-1/2-6" (63.5-150mm) and
can measure depths up to 9" (225mm). They are also available with rotating or non-rotating blades. All heads used in our depth micrometers
are accurate to ±.0001" or ±0.002mm.
Unless otherwise noted under the individual tools, they all have these features:

• A base shape design that will automatically position the fingers so that the base is easily held in place
for measuring stability
• All precision screws are ground and lapped
• All bases and rods are hardened, ground, and lapped for permanent accuracy
• All reading surfaces have a satin chrome finish that resists rust and provides a
no-glare background for the sharp lines and figures
• All measuring rods are adjustable
• Quick and easy adjustment

749MEBZ-150
