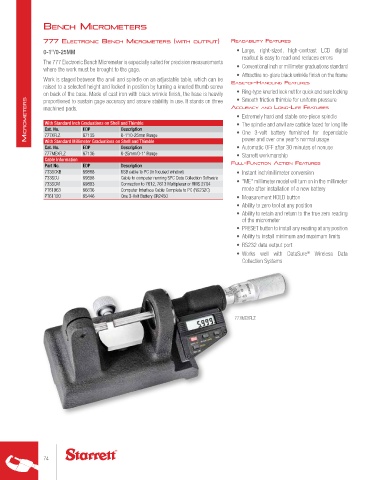

bencH MIcroMeters

777 electronIc bencH MIcroMeters (WItH output) reAdAbIlIty feAtures
0-1"/0-25MM • Large, right-sized, high-contrast LCD digital
readout is easy to read and reduces errors
The 777 Electronic Bench Micrometer is especially suited for precision measurements
where the work must be brought to the gage. • Conventional inch or millimeter graduations standard
• Attractive no-glare black wrinkle finish on the frame
Work is staged between the anvil and spindle on an adjustable table, which can be
raised to a selected height and locked in position by turning a knurled thumb screw eAse-of-HAndlInG feAtures
on back of the base. Made of cast iron with black wrinkle finish, the base is heavily • Ring-type knurled lock nut for quick and sure locking
• Smooth friction thimble for uniform pressure
MicroMeters machined pads. EDP Description AccurAcy And lonG-lIfe feAtures
proportioned to sustain gage accuracy and assure stability in use. It stands on three
• Extremely hard and stable one-piece spindle
With Standard Inch Graduations on Shell and Thimble
• The spindle and anvil are carbide faced for long life
Cat. No.
• One 3-volt battery furnished for dependable
777XFLZ
power and over one year's normal usage
With Standard Millimeter Graduations on Shell and Thimble
EDP
Description
Cat. No. 67135 0-1"/0-25mm Range • Automatic OFF after 30 minutes of nonuse
777MEXFLZ 67136 0-25mm/0-1" Range • Starrett workmanship
Cable Information
Part No. EDP Description full-functIon ActIon feAtures
733SCKB 69888 USB cable to PC (In focused window) • Instant inch/millimeter conversion
733SCU 69898 Cable to computer running SPC Data Collection Software • "ME" millimeter model will turn on in the millimeter
733SCM 69893 Connection to 7612, 7613 Multiplexer or RMS 2704
PT61963 66636 Computer Interface Cable Complete to PC (RS232C) mode after installation of a new battery
PT61120 65446 One 3-Volt Battery CR2450 • Measurement HOLD button
• Ability to zero tool at any position
• Ability to retain and return to the true zero reading
of the micrometer
• PRESET button to install any reading at any position
• Ability to install minimum and maximum limits
• RS232 data output port
®
• Works well with DataSure Wireless Data
Collection Systems

777MEXFLZ
