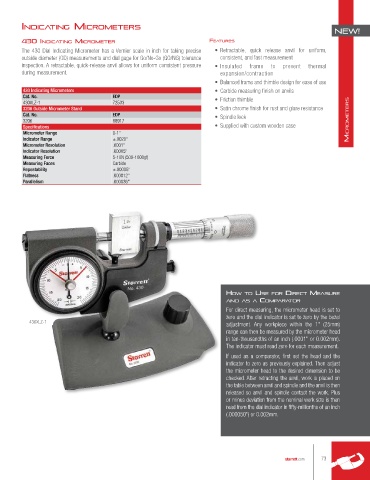

IndIcAtInG MIcroMeters
New!
430 IndIcAtInG MIcroMeter feAtures
The 430 Dial Indicating Micrometer has a Vernier scale in inch for taking precise • Retractable, quick release anvil for uniform,
outside diameter (OD) measurements and dial gage for Go/No-Go (GO/NG) tolerance consistent, and fast measurement
inspection. A retractable, quick-release anvil allows for uniform consistent pressure • Insulated frame to prevent thermal
during measurement. expansion/contraction
• Balanced frame and thimble design for ease of use
430 Indicating Micrometers • Carbide measuring finish on anvils
Cat. No. EDP • Friction thimble
430XLZ-1 72533
3206 Outside Micrometer Stand • Satin chrome finish for rust and glare resistance
Cat. No. EDP • Spindle lock
3206 68917 MicroMeters
Specifications • Supplied with custom wooden case
Micrometer Range 0-1"
Indicator Range ±.0020"
Micrometer Resolution .0001"
Indicator Resolution .00005"
Measuring Force 5-10N (500-1000gf)
Measuring Faces Carbide
Repeatability ±.00005"
Flatness .000012"
Parallelism .000036"

HoW to use for dIrect MeAsure
And As A coMpArAtor
For direct measuring, the micrometer head is set to
zero and the dial indicator is set to zero by the bezel
430XLZ-1 adjustment. Any workpiece within the 1" (25mm)
range can then be measured by the micrometer head
in ten-thousandths of an inch (.0001" or 0.002mm).
The indicator must read zero for each measurement.
If used as a comparator, first set the head and the
indicator to zero as previously explained. Then adjust
the micrometer head to the desired dimension to be
checked. After retracting the anvil, work is placed on
the table between anvil and spindle and the anvil is then
released so anvil and spindle contact the work. Plus
or minus deviation from the nominal work size is then
read from the dial indicator in fifty-millionths of an inch
(.000050") or 0.002mm.

starrett.com 73
