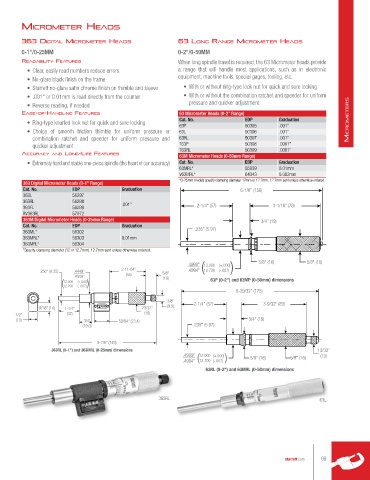

MIcroMeter HeAds

363 dIGItAl MIcroMeter HeAds 63 lonG rAnGe MIcroMeter HeAds
0-1"/0-25MM 0-2"/0-50MM
reAdAbIlIty feAtures When long spindle travel is required, the 63 Micrometer heads provide
• Clear, easily read numbers reduce errors a range that will handle most applications, such as in electronic
• No-glare black finish on the frame equipment, machine tools, special gages, tooling, etc.
• Starrett no-glare satin chrome finish on thimble and sleeve • With or without ring-type lock nut for quick and sure locking
• .001" or 0.01mm is read directly from the counter • With or without the combination ratchet and speeder for uniform
• Reverse reading, if needed pressure and quicker adjustment
eAse-of-HAndlInG feAtures 63 Micrometer Heads (0-2" Range)
• Ring-type knurled lock nut for quick and sure locking Cat. No. EDP Graduation MicroMeters
63P 50305 .001"
• Choice of smooth friction thimble for uniform pressure or 63L 50306 .001"
combination ratchet and speeder for uniform pressure and 63RL 50307 .001"
quicker adjustment T63P 50308 .0001"
T63RL 50309 .0001"
AccurAcy And lonG-lIfe feAtures
63M Micrometer Heads (0-50mm Range)
• Extremely hard and stable one-piece spindle (the heart of our accuracy) Cat. No. EDP Graduation
63MRL* 55939 0.01mm
V63MRL* 64343 0.002mm
*0-25mm models specify clamping diameter 12mm or 12.7mm. 12.7mm sent unless otherwise ordered.
363 Digital Micrometer Heads (0-1" Range)
Cat. No. EDP Graduation 6-1/8" (156)
363L 56297
363RL 56298 .001"
363FL 56299 2-1/4" (57) 3-1/16" (78)
RV363RL 57072
363M Digital Micrometer Heads (0-25mm Range) 3/4" (19)
Cat. No. EDP Graduation
363ML* 56302 .235" (5.97)
363MRL* 56303 0.01mm
363MFL* 56304
*Specify clamping diameter (12 or 12.7mm). 12.7mm sent unless otherwise ordered.
( )
.4999" 12.000 (+.000) 5/8" (16) 5/8" (16)
2-11-64"
.250" (6.35) .4449" 5/8" .4994" 12.700 (-.007)
.4999" (55) (16)
( ) 63P (0-2") and 63MP (0-50mm) dimensions
12.000
(+.000)
12.700
(-.007)
6-29/32" (175)
3/8" 2-1/4" (57) 3-9/32" (83)
9/16" (14) 1-1/4" 23/32" (9.5)
1/2" (32) (18)
(13) 3/4" 59/64" (23.4) 3/4" (19)
(19.0) .235" (5.97)
5-7/8" (149)
363RL (0-1") and 363MRL (0-25mm) dimensions 13/32"
( )
.4999" 12.000 (+.000) 5/8" (16) 5/8" (16) (10)
.4994" 12.700 (-.007)
63RL (0-2") and 63MRL (0-50mm) dimensions

363RL 63L

starrett.com 69
