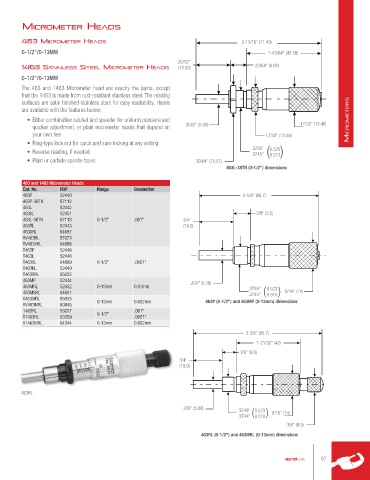

MIcroMeter HeAds

463 MIcroMeter HeAds 2-13/16" (71.49)
0-1/2"/0-13MM 1-43/64" (42.58)
25/32"
1463 stAInless steel MIcroMeter HeAds (19.82) 23/64" (9.08)
0-1/2"/0-13MM
The 463 and 1463 Micrometer head are exactly the same, except
that the 1463 is made from rust-resistant stainless steel. The reading
surfaces are satin finished stainless steel for easy readability. Heads
are available with the features below:
• Either combination ratchet and speeder for uniform pressure and MicroMeters
quicker adjustment, or plain micrometer heads that depend on .2002" (5.08) 17/32" (13.49)
your own feel 17/32" (13.49)
• Ring-type lock nut for quick and sure locking at any setting
.3750"
9.525
• Reverse reading, if needed .3745" ( )
9.512
• Plain or carbide spindle faces 39/64" (15.61)
463L-38TN (0-1/2") dimensions
463 and 1463 Micrometer Heads
Cat. No. EDP Range Graduation
463P 52440 2-5/8" (66.7)
463P-38TN 67112
463L 52442
463XL 52451 3/8" (9.5)
463L-38TN 67113 0-1/2" .001" 3/4"
463RL 52443 (19.0)
463XRL 64687
RV463RL 57073
RV463XRL 64688
T463P 52446
T463L 52448
T463XL 64689 0-1/2" .0001"
T463RL 52449
T463XRL 65052
463MP 52444 .200" (5.08)
463MRL 52452 0-13mm 0.01mm .3749" 9.523
463MXRL 64691 .3744" ( ) 9/16" (14)
9.510
V463MRL 65053 0-13mm 0.002mm 463P (0-1/2") and 463MP (0-13mm) dimensions
RV463MRL 60845
1463RL 53207 0-1/2" .001"
T1463RL 53209 .0001"
V1463MRL 64344 0-13mm 0.002mm
3-3/8" (85.7)
1-21/32" (42)
3/8" (9.5)
3/4"
(19.0)

463RL

( )
.200" (5.08)
.3749" 9.523 9/16" (14)
.3744" 9.510
3/8" (9.5)
463RL (0-1/2") and 463MRL (0-13mm) dimensions

starrett.com 67
