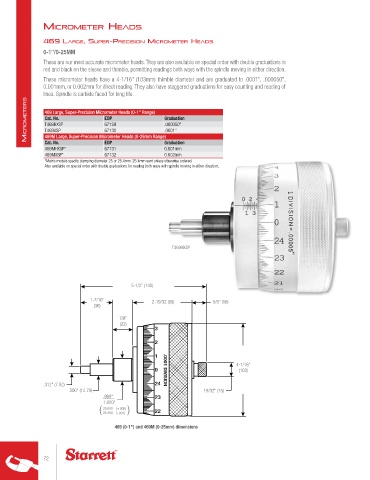

Page 72 - catalgo33

MIcroMeter HeAds

469 lArGe, super-precIsIon MIcroMeter HeAds
0-1"/0-25MM
These are our most accurate micrometer heads. They are also available on special order with double graduations in
red and black on the sleeve and thimble, permitting readings both ways with the spindle moving in either direction.
These micrometer heads have a 4-1/16" (103mm) thimble diameter and are graduated to .0001", .000050",
0.001mm, or 0.002mm for direct reading. They also have staggered graduations for easy counting and reading of
lines. Spindle is carbide faced for long life.
MicroMeters 469 Large, Super-Precision Micrometer Heads (0-1" Range) Graduation

EDP
Cat. No.
67129
T469HXSP
.000050"
.0001"
T469XSP
67130
469M Large, Super-Precision Micrometer Heads (0-25mm Range)
Cat. No.
0.001mm
67131
469MHXSP* EDP Graduation
469MXSP* 67132 0.002mm
*Metric models specify clamping diameter 25 or 25.4mm. 25.4mm sent unless otherwise ordered.
Also available on special order with double graduations for reading both ways with spindle moving in either direction.

T469HXSP

5-1/2" (140)

1-7/16" 2-19/32 (66) 5/8" (16)
(36)

7/8"
(22)

4-1/16"
(103)

.312" (7.92)
.500" (12.70) 19/32" (15)
.999"
1.000"
( )
25.000 (+.000)
25.400 (-.007)
469 (0-1") and 469M (0-25mm) dimensions
