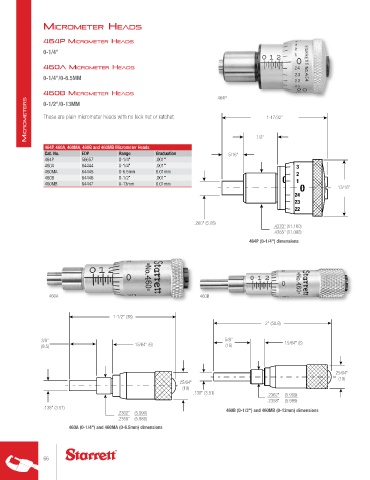

MIcroMeter HeAds

464p MIcroMeter HeAds
0-1/4"

460A MIcroMeter HeAds
0-1/4"/0-6.5MM

460b MIcroMeter HeAds 464P
MicroMeters These are plain micrometer heads with no lock nut or ratchet. 1-17/32"
0-1/2"/0-13MM

464P, 460A, 460MA, 460B and 460MB Micrometer Heads 1/2"
Cat. No. EDP Range Graduation 5/16"
464P 56657 0-1/4" .001"
460A 64444 0-1/4" .001"
460MA 64445 0-6.5mm 0.01mm
460B 64446 0-1/2" .001"
460MB 64447 0-13mm 0.01mm
13/16"

.200" (5.08)
.4370" (11.100)
.4365" (11.088)
464P (0-1/4") dimensions

460A 460B

1-1/2" (38)
2" (50.8)

3/8" 5/8" 15/64" (6)
(9.5) 15/64" (6) (16)

25/64"
(10)
25/64"
(10)
.138" (3.51) .2362" (5.999)
.2358" (5.989)
.138" (3.51) 460B (0-1/2") and 460MB (0-13mm) dimensions
.2362" (5.999)
.2358" (5.989)
460A (0-1/4") and 460MA (0-6.5mm) dimensions
